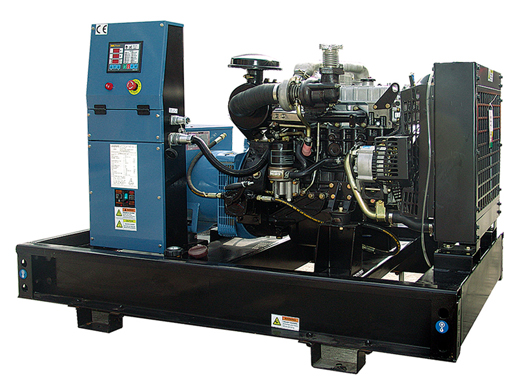

The Foton series diesel engines are based on the technology indraught, assimilation and incorporation from ISUZU. The AVL company improve its design further. The volume of the engine is small, and the structure is compact.
Power coverage from 15kw~36kw
Model: GF: Open type &GFS: Soundproof /Silent/Supper silent type
Engine: ISUZU
Speed: 1500/1800rpm
Alternator: Stamford /Leroysomer /Marathon/ABB/FURUI YHG
IP &Insulation Class: IP22-23 &F/H
Frequency: 50/60HZ
Controller: Deepsea/Comap/Smartgen/DKG/Others
ATS System: Smartgen/ABB/SOCOMIC /Others
Silent&Supper silent Gen-set Sound level: 63-75db(at 7m side)
| Generator set Technical specification | ||||||||||||
|
generator set performance |
Engine Performance |
Dim.L*W*H | ||||||||||
|
Genset model |
Prime Power | Standby power | Fre. | Model | Power |
Fuel consumption |
Open type | Weight | Silent type | Weight | ||
| KW | KVA | KW | KVA | HZ | Kw | L/h | (mm) | (Kg) | (mm) | (Kg) | ||
| GF/GFS-U15 | 15 | 18.8 | 18.5 | 20.6 | 50 | 4JB1 | 24 | 5.6 | 1750*700*1010 | 650 | 1840*770*1015 | 770 |
| GF/GFS-U20 | 20 | 25 | 22 | 27.5 | 50 | 4JB1 | 24 | 5.6 | 1750*700*1010 | 660 | 1840*770*1015 | 820 |
| GF/GFS-U24 | 24 | 30 | 26.4 | 33 | 50 | 4JB1T | 28 | 5.6 | 1750*700*1015 | 680 | 1840*775*1020 | 850 |
| GF/GFS-U30 | 30 | 37.5 | 33 | 41 | 50 | 4JB1TT | 36 | 5.6 | 1850*700*1150 | 780 | 2000*800*1250 | 950 |
| GF/GFS-U20 | 20 | 25 | 22 | 27.5 | 60 | 4JB1 | 28 | 6.4 | 1750*700*1010 | 650 | 1840*770*1015 | 770 |
| GF/GFS-U24 | 24 | 30 | 26.4 | 33 | 60 | 4JB1 | 28 | 6.4 | 1750*700*1010 | 660 | 1840*770*1015 | 820 |
| GF/GFS-U30 | 30 | 37.5 | 33 | 41 | 60 | 4JB1T | 34 | 6.4 | 1750*700*1015 | 680 | 1840*775*1020 | 850 |
| GF/GFS-U36 | 36 | 45 | 40 | 50 | 60 | 4JB1TT | 43 | 6.4 | 1850*700*1150 | 780 | 2000*800*1250 | 950 |
