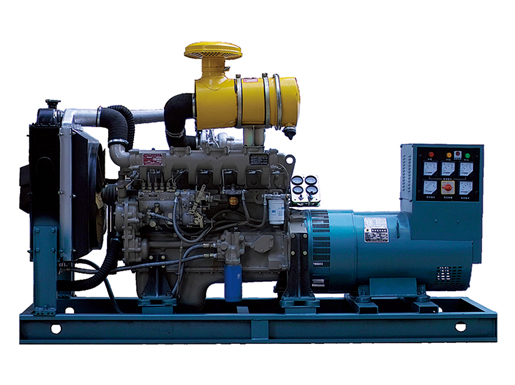

潍柴发电机组选用潍坊柴油机厂生产的潍坊柴油机为动力。该机型体积小、马力强劲、使用安全可靠。售后服务和充足的配件供应比较完善，功率范围24KW-150KW，质量稳定，价廉物美。
| 机组技术参数 | ||||||||||
| 机组性能 | 油机性能 | 机组尺寸 长*宽*高 | ||||||||
| 机组款式 |
主用功率 |
备用功率 |
频率. | 油机型号 | 功率 | 燃油耗 | 开架 | 重量 | ||
| KW | KVA | KW | KVA | HZ | KW | g/kw.h | (mm) | (Kg) | ||
| GF/GFS-W10 | 10 | 12.5 | 11 | 13.8 | 50 | SL2100ABD | 16 | <=257 | 1350*670*1030 | 630 |
| GF/GFS-W12 | 12 | 15 | 13.2 | 16.5 | 50 | SL2100ABD | 16 | <=257 | 1350*670*1030 | 680 |
| GF/GFS-W15 | 15 | 18.75 | 16.5 | 20.6 | 50 | 495D | 26.5 | <=256 | 1700*630*1000 | 750 |
| GF/GFS-W20 | 20 | 25 | 22 | 27.5 | 50 | 495D | 26.5 | <=256 | 1700*630*1000 | 780 |
| GF/GFS-W24 | 24 | 30 | 26.4 | 33 | 50 | K4100D | 30.1 | <=256 | 1700*630*1000 | 800 |
|
GF/GFS-W28 |
28 |
35 |
30.8 |
38.5 |
50 |
K4102D |
33 |
<=256 |
1700*630*1000 |
850 |
| GF/GFS-W30 | 30 | 37.5 | 33 | 41 | 50 | 495ZD | 36 | <=256 | 1760*800*1100 | 900 |
| GF/GFS-W34 | 34 | 42.5 | 37.4 | 46.8 | 50 | 4100ZD | 42 | <=256 | 1760*800*1100 | 950 |
| GF/GFS-W40 | 40 | 50 | 44 | 55 | 50 | R4110D40 | 49 | <=256 | 1850*800*1100 | 1000 |
| GF/GFS-W50 | 50 | 62.5 | 55 | 68.8 | 50 | R4105ZD | 56 | <=231 | 1850*800*1100 | 1050 |
| GF/GFS-W58 | 58 | 72.5 | 63.8 | 79.8 | 50 | R6105D | 68 | <=231 | 2350*800*1270 | 1200 |
| GF/GFS-W75 | 75 | 93.75 | 82.5 | 103 | 50 | R6105ZD | 84 | <=231 | 2350*800*1270 | 1300 |
| GF/GFS-W90 | 90 | 112.5 | 99 | 123.8 | 50 | R6105ZLD | 100 | <=231 | 2350*800*1270 | 1350 |
| GF/GFS-W100 | 100 | 125 | 110 | 137.5 | 50 | R6105AZLD | 110 | <=218 | 2470*800*1270 | 1450 |
| GF/GFS-W120 | 120 | 150 | 132 | 165 | 50 | R6105IZLD | 132 | <=218 | 2470*800*1270 | 1550 |
| GF/GFS-W140 | 140 | 175 | 154 | 192.5 | 50 | R6113ZLD | 155 | <=218 | 2470*800*1270 | 1500 |
| GF/GFS-W200 | 200 | 250 | 220 | 275 | 50 | TH6126ZD | 220 | <=198 | 2800*1100*1800 | 2300 |
| GF/GFS-W10 | 10 | 12.5 | 11 | 13.8 | 60 | SL2100ABD | 17.3 | <=257 | 1350*670*1030 | 630 |
| GF/GFS-W12 | 12 | 15 | 13.2 | 16.5 | 60 | SL2100ABD | 17.3 | <=257 | 1350*670*1030 | 680 |
| GF/GFS-W15 | 15 | 18.75 | 16.5 | 20.6 | 60 | 495D8 | 33 | <=256 | 1700*630*1000 | 750 |
| GF/GFS-W20 | 20 | 25 | 22 | 27.5 | 60 | 495D8 | 33 | <=256 | 1700*630*1000 | 780 |
| GF/GFS-W24 | 24 | 30 | 26.4 | 33 | 60 | K4100D | 34 | <=256 | 1700*630*1000 | 800 |
| GF/GFS-W28 | 28 | 35 | 30.8 | 38.5 | 60 | K4100D | 34 | <=256 | 1700*630*1000 | 850 |
| GF/GFS-W30 | 30 | 37.5 | 33 | 41.3 | 60 | 4100ZD | 40 | <=256 | 1760*800*1100 | 900 |
| GF/GFS-W34 | 34 | 42.5 | 37.4 | 46.8 | 60 | 4100ZD | 45 | <=256 | 1760*800*1100 | 950 |
| GF/GFS-W40 | 40 | 50 | 44 | 55 | 60 | R4110D40 | 54 | <=256 | 1850*800*1100 | 1000 |
| GF/GFS-W50 | 50 | 62.5 | 55 | 68.8 | 60 | R4105ZD | 60 | <=231 | 1850*800*1100 | 1050 |
| GF/GFS-W58 | 58 | 72.5 | 63.8 | 79.8 | 60 | R6105D | 68 | <=231 | 2350*800*1270 | 1200 |
| GF/GFS-W75 | 75 | 93.75 | 82.5 | 103 | 60 | R6105ZD | 88 | <=231 | 2350*800*1270 | 1300 |
| GF/GFS-W90 | 90 | 112.5 | 99 | 123.8 | 60 | R6105ZLD | 113 | <=231 | 2350*800*1270 | 1350 |
| GF/GFS-W100 | 100 | 125 | 110 | 137.5 | 60 | R6105AZLD | 120 | <=218 | 2470*800*1270 | 1450 |
| GF/GFS-W120 | 120 | 150 | 132 | 165 | 60 | R6105IZLD | 136 | <=218 | 2470*800*1270 | 1550 |
| GF/GFS-W150 | 150 | 187 | 165 | 206 | 60 | R6113ZLD | 165 | <=218 | 2470*800*1270 | 1600 |
