QB Series
- Location :
- Home
- >Products
- >Pumps
- >Clean pump
.jpg)
|
Model |
Power(KW) |
Current (A) |
Capacitors (μF) |
Max Head (m) |
Max.Capacity (L/min) |
Inlet/Out（Inch） |
Maximum suction (m) |
Capacity l/min |
|||||||
|
kW |
HP |
5 |
10 |
20 |
30 |
40 |
50 |
60 |
|||||||
|
QB60 |
0.37 |
0.5 |
1.5 |
8 |
36 |
35 |
1"X1" |
9 |
32 |
26 |
16 |
6 |
|
|
|
|
QB70 |
0.55 |
0.75 |
2.4 |
12 |
55 |
40 |
1"X1" |
9 |
48 |
40 |
28 |
14 |
1 |
|
|
|
QB70H |
0.75 |
1 |
3.7 |
16 |
68 |
42 |
1"X1" |
9 |
60 |
52 |
36 |
22 |
6 |
4 |
|
|
QB80 |
1.1 |
1 |
4.6 |
20 |
78 |
53 |
1"X1" |
9 |
71 |
64 |
49 |
34 |
19 |
28 |
10 |
|
QB90 |
1.5 |
2 |
6.4 |
30 |
84 |
70 |
1.5"X1.5" |
9 |
80 |
73 |
62 |
51 |
40 |
|
|

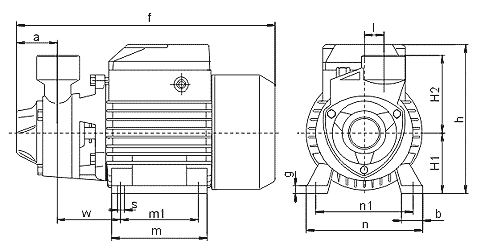

Overall & Installation Dimensions
.gif)
|
Model
|
Frame Dimensions(mm) |
Weight (kg) |
Packing size (mm) |
Packing |
|||||||||||||||
|
a |
f |
h |
H1 |
H2 |
I |
m |
m1 |
n |
w |
b |
g |
s |
NW |
GW |
L |
W |
H |
20cont |
|
|
QB60 |
42 |
265 |
154 |
63 |
80 |
20 |
98 |
80 |
120 |
63 |
22 |
8 |
7 |
5.7 |
6.1 |
285 |
145 |
175 |
3400 |
|
QB70 |
55 |
291 |
179 |
71 |
85 |
20 |
110 |
90 |
134 |
68 |
23 |
8 |
7 |
8.8 |
9.3 |
310 |
180 |
205 |
2200 |
|
QB70H |
55 |
291 |
179 |
71 |
85 |
20 |
110 |
90 |
134 |
68 |
23 |
8 |
7 |
8.8 |
9.3 |
310 |
180 |
205 |
2200 |
|
QB80 |
55 |
291 |
179 |
71 |
85 |
20 |
110 |
90 |
134 |
68 |
23 |
8 |
7 |
9 |
9.7 |
310 |
180 |
205 |
2200 |
|
QB90 |
90 |
405 |
193 |
108 |
85 |
20 |
130 |
100 |
152 |
100 |
25 |
10 |
9 |
17.7 |
18.7 |
420 |
195 |
225 |
1320 |
