IDB Series

  • IDB Series

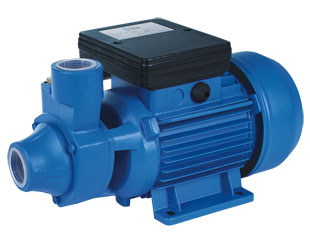

IDB series clean water pump motor and pump are associated vortex pump direct, simple structure, small size, light weight, higher head, flow is relatively small, suitable for conveying the water temperature does not exceed 80'C or physical and chemical properties Liquid similar to water. Pumping wells for home, car washing, water fountains, garden irrigation and other occasions.


Model

Power(KW)

Current  (A)

Capacitors   (μF)

Max Head  (m)

Max.Capacity  (L/min)

Inlet/Out(Inch)

Maximum suction (m)

Capacity l/min

kW

HP

10

20

25

30

35

40

50

60

IDB35

0.37

0.5

1.5

8

36

35

1"X1"

9

22

14

18

6





IDB40

0.4

0.6

2

10

40

40

1"X1"

9

31

21

16

11





IDB50

0.75

1

3.7

16

50

45

1"X1"

9

40

30

24

18

11

6



1.5DB60

1.1

1.5

4.6

20

60

51

1.5"X1.5"

9

48

38

32

26

20

14

3


40DB50

1.5

2

6.4

30

84

70

1.5"X1.5"

9

70

58

54

48

41

36

24

12

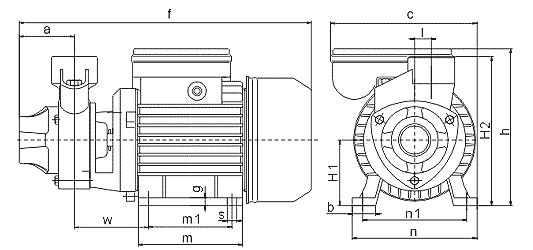

Overall & Installation Dimensions

Model

Frame Dimensions(mm)

Weight  (kg)

Packing size   (mm)

Packing

a

f

h

C

H 1

H2

i

m

m1

n

n1

w

b

g

s

NW

GW

L

W

H

20柜

IDB35

53

281

151

141

63

143

16

100

80

120

100

72

23

7.5

9

6

6.7

295

155

175

3000

IDB40

51

725

151

141

63

143

16

100

80

120

100

72

23

7.5

9

6

6.7

290

170

180

3000

IDB50

53

305

170

155

71

157

20

110

90

135

112

77

25

9

10

8.8

9.4

335

180

200

2000

1.5DB60

55

309

170

155

71

157

20

110

90

135

112

79

25

9

10

10.5

11.2

335

180

200

2000

40DB50

90

387

205

205

80

189

21

130

100

152

125

96

25

10

11

21

22

425

220

255

1050
