PX Series

Location :
Home
>Products
>Pumps
>Centrifugal pump

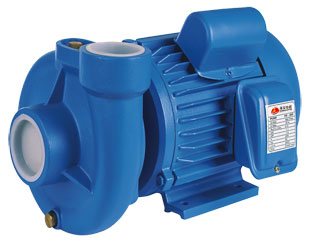

PX series pumps are centrifugal pumps and micro-motor direct-coupledsingle-stage centrifugal pumps, the use of reliable and durable mechanical seals, centrifugal pump with large flow rate, there is a certain emissions ofsmall particles of turbid water and solid skills. For home, hospitals, hotels, factories and agricultural water supply and other four irrigation.

Model	Power(KW)		Current (A)	Capacitors (μF)	Max Head (m)	Max.Capacity (L/min)	Inlet/Out（Inch）	Maximum suction (M)	Capacity l/min
Model	kW	HP	Current (A)	Capacitors (μF)	Max Head (m)	Max.Capacity (L/min)	Inlet/Out（Inch）	Maximum suction (M)	100	150	200	300	400	500	600
PX205	1.1	1.5	6.6	30	18	480	2"X2"	8	17	15.5	14	13	10	6	-
PX305	1.5	2	8.8	40	20	560	2"X2"	8	20	19	18	17	15	13	8

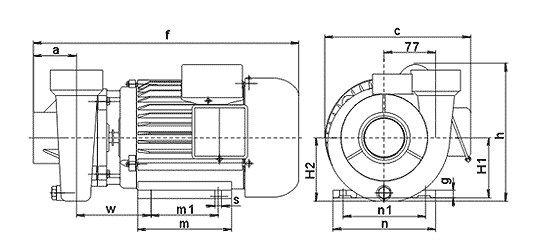

Overall & Installation Dimensions

Model	Frame Dimensions(mm)														Weight (kg)		Mounting Dimensions(mm)			Packing
Model	a	f	h	H1	H2	l	c	m	m1	n	n1	w	g	s	NW	GW	L	W	H	Packing
PX205	64	395	206	90	95	77	218	140	100	154	125	111	11	10	20	21.5	440	285	275	700
PX305	64	395	206	90	95	77	218	140	100	154	125	111	11	10	21.5	22.8	440	285	275	700

Service Hotline: 086-593-6375208
