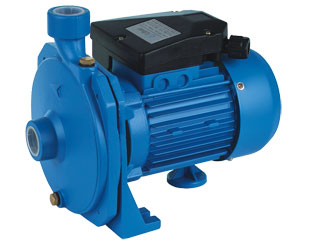

SCM CENTRIFUGAL PUMP

  • SCM CENTRIFUGAL PUMP
SCM series centrifugal pumps are single stage,high efficient electric pumps,consisted of a mini-nature motor and a single impeller centrifugal pump.They have a good performance in big Capacity and high lift.
They are widely used in well-pumping,water supplying, decanting, mixing and irrigating for civil,industry and agriculture,etc.

Operating Condiyions:
Fluid temperature up to 60℃,Max.ambient temperature 40℃.
Testing under:220V/50Hz,2850rpm.
The voltage and frequency can be adjusted to local requirements.
TYPE
Input Power
Current
(A)
Capacitor (μF)
H.max
(m)
Q.max (l/min)
Size
(inch)
S.Head
(M)
Capacity l/min
kW
HP
20
40
60
80
100
120
140
200
SCM16
0.37
0.5
1.6
8
15
78
1"X1"
8
15
12.5
7





SCM22
0.5
0.6
2.6
12
21
86
1"X1"
8
19
17
13
10




SCM28
0.75
1
3.8
16
27
105
1"X1"
8
24.5
23
18
13
2



SCM32
1
1.4
4.8
20
32
110
1"X1"
8
31
28
24
18
14



1.5SCM20
1
1.4
4.8
20
20
210
1.5"X1.5"
8
19
19
19
18
17
17
16
14

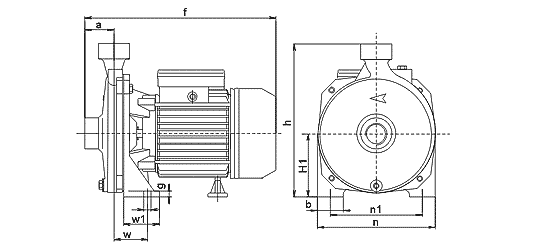

Dimensions：
TYPE
Dimensions mm
Weight (kg)
PackingSize
Packing QTY.
a
f
h
H1
c
w
w1
n1
n
g
s
NW
GW
L
W
H
20'Cont
SCM16
45
280
200
85
158
45
40
110
40
9
10
8
8.6
310
165
235
2300
SCM22
51
286
205
85
162
47
40
110
40
9
10
8.6
9.2
310
165
235
2100
SCM28
45
297
226
97
182
53
55
142
40
9
11
9.8
10.4
340
175
235
1850
SCM32
45
297
237
97
182
53
55
142
40
9
11
13
13.7
340
205
260
1500
1.5SCM20
45
313
222
97
182
53
55
142
40
9
11
13.2
14
350
210
265
1500
