.jpg)
|
Model |
Power(KW) |
Current (A) |
Capacitors (μF) |
Max Head (m) |
Max.Capacity (L/min) |
Inlet/Out（Inch） |
Maximum suction (M) |
Capacity l/min |
||||||||
|
kW |
HP |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
|||||||
|
JETP60 |
600 |
0.8 |
2.4 |
12 |
40 |
38 |
1"X1" |
8 |
39 |
36 |
32 |
29 |
25 |
22 |
|
|
|
JETP80 |
800 |
1.1 |
3.7 |
16 |
45 |
43 |
1"X1" |
8 |
42 |
40 |
37 |
35 |
33 |
31 |
10 |
|
|
JETP100 |
1000 |
1.3 |
4.6 |
20 |
51 |
49 |
1"X1" |
8 |
46 |
44 |
41 |
39 |
36 |
35 |
28 |
|
|
JETP110 |
1100 |
1.5 |
4.9 |
20 |
52 |
54 |
1"X1" |
8 |
52 |
48 |
45 |
42 |
40 |
38 |
32 |
14 |

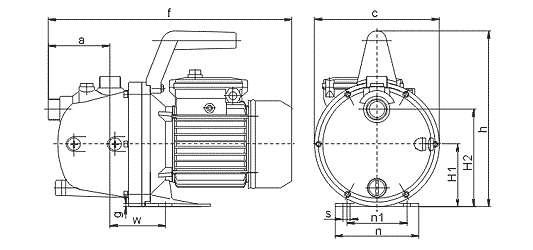

Overall & Installation Dimensions
.gif)
|
Model
|
Frame Dimensions(mm) |
Weight(kg) |
Packing size mm |
Packing |
||||||||||||||
|
a |
f |
h |
H1 |
W |
H2 |
W1 |
W2 |
n |
n1 |
g |
s |
NW |
GW |
L |
W |
H |
20'Cont |
|
|
JETP60 |
96 |
385 |
230 |
99 |
212 |
153 |
104 |
184 |
130 |
94 |
7 |
11 |
7.4 |
8.4 |
420 |
210 |
220 |
1400 |
|
JETP80 |
96 |
385 |
230 |
99 |
212 |
153 |
104 |
184 |
130 |
94 |
7 |
11 |
7.8 |
8.8 |
420 |
210 |
220 |
1400 |
|
JETP100 |
96 |
385 |
230 |
99 |
212 |
153 |
104 |
184 |
130 |
94 |
7 |
11 |
8.2 |
9.2 |
420 |
210 |
220 |
1200 |
|
JETP110 |
96 |
385 |
230 |
99 |
212 |
153 |
104 |
184 |
130 |
94 |
7 |
11 |
8.5 |
9.5 |
420 |
210 |
220 |
1200 |
