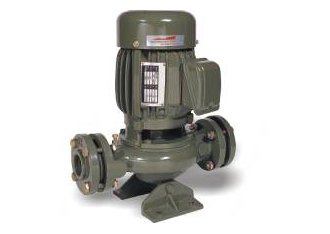

GD series pipeline pump is highly efficient pump, the structure is almost perfect, with a high-performance, low fuel consumption characteristics, the pump durability and easy maintenance. This pump is widely used in chemical, light industry and residential construction in the transmission fluid, the same applies to high-rise building water supply and central air-conditioning cycle.

Model	Power(KW)		Voltage (V)	Speed (r.p.m)	Max.Capacity (L/min)	Max Head (m)	Caliber (mm)	(NPSH)r(m)
Model	HP	kW	Voltage (V)	Speed (r.p.m)	Max.Capacity (L/min)	Max Head (m)	Caliber (mm)	(NPSH)r(m)
25GD-9	0.5	0.37	220	2900	100	9	25×25	3.0
25GD-14	0.75	0.55	220		100	14	25×25	3.0
32GD-12	0.5	0.37	220		100	12	32×32	3.0
32GD-20	1	0.75	220/380		100	20	32×32	3.0
40GD-14	1	0.75	220/380		190	14	40×40	3.0
40GD-15	1.25	1.0	220/380		190	15	40×40	3.0
40GD-20	2	1.5	220/380		190	20	40×40	3.0
40GD-30	3	2.2	220/380		190	30	40×40	3.0
40GD-40	4	3	380		190	40	40×40	3.0
40GD-50	5.5	4	380		190	50	40×40	3.0
50GD-17	2	1.5	220/380		300	17	50×50	3.8
50GD-24	3	2.2	220/380		300	24	50×50	3.8
50GD-30	4	3	380		300	30	50×50	3.8
50GD-40	5.5	4	380		300	40	50×50	3.8
50GD-50	7.5	5.5	380		300	50	50×50	3.8
65GD-19	3	2.2	220/380		410	19	65×65	3.8
65GD-24	4	3	380		410	24	65×65	3.8
65GD-30	5.5	4	380		410	30	65×65	3.8
65GD-40	7.5	5.5	380		410	40	65×65	3.8
65GD-50	10	7.5	380		410	50	65×65	3.8
65GD-70	15	11	380		410	70	65×65	3.8
65GD-80	20	15	380		410	80	65×65	3.8
80GD-21	5.5	4	380		700	21	80×80	3.8
80GD-30	7.5	5.5	380		700	30	80×80	3.8
80GD-40	10	7.5	380		700	40	80×80	3.8
80GD-50	15	11	380		830	50	80×80	3.8
100GD-21	7.5	5.5	380		1000	21	100×100	4.0
100GD-30	10	7.5	380		1000	30	100×100	4.0
100GD-19	10	7.5	380		1500	19	100×100	4.0
100GD-45	15	11	380		830	45	100×100	4.0
100GD-50	20	15	380		830	50	100×100	4.0
