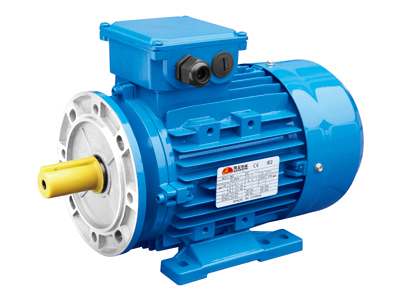

MS(IE3) THREE PHASE ALUMINIUM HOUSING MOTOR
- Location :
- Home
- >Products
- >Electric Motor
- >Aluminum Housing Motor
(2).jpg)
Three phase, MS(IE3) series Aluminium housing motors are acknowledged that having a good fame for quality and reliability, they are suitable for driving machines which do not have special requirement, such as machine tools, pumps, blowers, etc.
- Superior finish - Externally Ventilated - Light weight construction
- Top mounted terminal box - IP55 Protection
- Interchangeable foot mounting and flange mounting
Operating Conditions:
| Model | Output | Voltage (V) | Current(A) | Speed r/min | Eff.(%) | Power factor | Tstart/Tn | Ist/In | Tmax/Tn | N.G (kg) | |||
| Kw | HP | 50% | 75% | 100% | |||||||||
| IE3 MS801-2 | 0.75 | 1 | 230/400 | 2.82/1.63 | 2820 | 79.7 | 81.0 | 80.7 | 0.831 | 2.3 | 6.0 | 2.3 | 9.5 |
| IE3 MS802-2 | 1.1 | 1.5 | 4.0/2.3 | 2820 | 81.5 | 82.9 | 82.7 | 0.836 | 2.3 | 7.5 | 2.3 | 11 | |
| IE3 MS90S-2 | 1.5 | 2 | 5.23/3.02 | 2840 | 84.0 | 85.0 | 84.2 | 0.857 | 2.4 | 7.5 | 2.4 | 15 | |
| IE3 MS90L-2 | 2.2 | 3 | 7.44/4.3 | 2840 | 86.0 | 86.5 | 85.9 | 0.865 | 2.4 | 7.5 | 2.4 | 18 | |
| IE3 MS100L-2 | 3 | 4 | 9.9/5.72 | 2850 | 88.2 | 87.3 | 87.1 | 0.873 | 2.4 | 8.0 | 2.4 | 25 | |
| IE3 MS112M-2 | 4 | 5.5 | 400/690 | 7.48/4.32 | 2870 | 88.0 | 88.4 | 88.1 | 0.880 | 2.4 | 8.5 | 2.4 | 28.5 |
| IE3 MS132S1-2 | 5.5 | 7.5 | 10/5.8 | 2900 | 89.1 | 89.6 | 89.2 | 0.890 | 2.2 | 7.5 | 2.4 | 41 | |
| IE3 MS132S2-2 | 7.5 | 10 | 13.5/7.8 | 2900 | 90.0 | 90.5 | 90.1 | 0.892 | 2.2 | 7.5 | 2.4 | 46.5 | |
| IE3 MS160M1-2 | 11 | 15 | 19.5/11.3 | 2920 | 89.8 | 91.3 | 91.2 | 0.896 | 2.2 | 8.5 | 2.4 | 81 | |
| IE3 MS160M2-2 | 15 | 20 | 26.2/15.1 | 2920 | 91.6 | 92.0 | 91.9 | 0.805 | 2.2 | 8.5 | 2.4 | 93 | |
| IE3 MS160L-2 | 18.5 | 25 | 31.9/18.4 | 2920 | 92.1 | 92.5 | 92.4 | 0.910 | 2.2 | 8.5 | 2.4 | 104 | |
| IE3 MS802-4 | 0.75 | 1 | 230/400 | 2.97/1.72 | 1400 | 81.0 | 82.7 | 82.5 | 0.770 | 2.4 | 7.0 | 2.4 | 12 |
| IE3 MS90S-4 | 1.1 | 1.5 | 4.25/2.45 | 1420 | 82.6 | 84.3 | 84.1 | 0.775 | 2.4 | 7.5 | 2.4 | 16 | |
| IE3 MS90L-4 | 1.5 | 2 | 5.68/3.28 | 1420 | 83.8 | 85.4 | 85.3 | 0.778 | 2.4 | 8.0 | 2.4 | 20 | |
| IE3 MS100L1-4 | 2.2 | 3 | 8.0/4.62 | 1440 | 84.3 | 86.7 | 86.7 | 0.798 | 2.4 | 8.0 | 2.4 | 26 | |
| IE3 MS100L2-4 | 3 | 4 | 10.8/6.2 | 1440 | 86.0 | 87.6 | 87.7 | 0.801 | 2.4 | 8.0 | 2.4 | 30 | |
| IE3 MS112M-4 | 4 | 5.5 | 400/690 | 7.97/4.6 | 1450 | 88.3 | 88.8 | 88.6 | 0.821 | 2.4 | 7.5 | 2.4 | 38 |
| IE3 MS132S-4 | 5.5 | 7.5 | 10.8/6.2 | 1450 | 89.0 | 89.7 | 89.6 | 0.825 | 2.3 | 7.5 | 2.4 | 46 | |
| IE3 MS132M-4 | 7.5 | 10 | 14.4/8.32 | 1450 | 90.1 | 90.6 | 90.4 | 0.834 | 2.3 | 7.5 | 2.4 | 54 | |
| IE3 MS160M-4 | 11 | 15 | 20.8/12.0 | 1460 | 90.5 | 91.5 | 91.4 | 0.838 | 2.2 | 7.0 | 2.4 | 88 | |
| IE3 MS160L-4 | 15 | 20 | 27.9/16.1 | 1460 | 91.5 | 92.5 | 92.1 | 0.847 | 2.2 | 7.0 | 2.4 | 103 | |
| IE3 MS90S-6 | 0.75 | 1 | 230/400 | 3.42/1.97 | 910 | 77.5 | 94.4 | 78.9 | 0.700 | 2 | 4.0 | 2.3 | 15 |
| IE3 MS90L-6 | 1.1 | 1.5 | 4.8/2.78 | 910 | 80.2 | 81.3 | 81.0 | 0.710 | 2 | 4.0 | 2.3 | 20 | |
| IE3 MS100L1-6 | 1.5 | 2 | 6.35/3.66 | 930 | 81.3 | 82.6 | 82.5 | 0.720 | 2 | 5.0 | 2.3 | 25 | |
| IE3 MS112M-6 | 2.2 | 3 | 8.98/5.2 | 940 | 83.2 | 85.0 | 84.3 | 0.730 | 2 | 5.0 | 2.3 | 30 | |
| IE3 MS132S-6 | 3 | 4 | 11.9/6.87 | 960 | 84.5 | 85.8 | 85.6 | 0.740 | 2.2 | 6.5 | 2.3 | 38.5 | |
| IE3 MS132M1-6 | 4 | 5.5 | 400/690 | 9.0/5.2 | 960 | 85.3 | 86.9 | 86.8 | 0.745 | 2.2 | 7.0 | 2.3 | 47.5 |
| IE3 MS132M2-6 | 5.5 | 7.5 | 12.1/7.0 | 960 | 86.9 | 88.2 | 88.0 | 0.750 | 2.2 | 7.0 | 2.3 | 58 | |
| IE3 MS160M-6 | 7.5 | 10 | 16.1/9.3 | 970 | 87.5 | 89.0 | 89.1 | 0.760 | 2.2 | 7.0 | 2.3 | 83 | |
| IE3 MS160L-6 | 11 | 15 | 22.9/13.2 | 970 | 89.0 | 90.2 | 90.3 | 0.770 | 2.2 | 7.0 | 2.3 | 99 | |
.jpg)
|
Frame No |
Installation Size |
Overall Dimension |
Installation Size B14 |
Installation Size B5 |
Installation Size B14B |
Installation Size B5R |
|||||||||||||||||||||||||||||||||
| A | B | C | D | E | F | G | H | K | O | AB | AC | AD | HD | L | M | N | P | R | S | T | M | N | P | R | S | T | M | N | P | R | S | T | M | N | P | R | S | T | |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 1-M20×1.5 | 155 | 160 | 125 | 205 | 295 | 100 | 80 | 120 | 0 | M6 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | - | - | - | - | - | - | - | - | - | - | - | - |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 1-M20×1.5 | 180 | 180 | 138 | 228 | 355 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | - | - | - | - | - | - | - | - | - | - | - | - |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 1-M20×1.5 | 180 | 180 | 138 | 228 | 385 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | - | - | - | - | - | - | - | - | - | - | - | - |
| 100 | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 1-M20×1.5 | 200 | 210 | 150 | 250 | 440 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4 | - | - | - | - | - | - | - | - | - | - | - | - |
| 112 | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 1-M25×1.5 | 220 | 225 | 172 | 284 | 405 | 130 | 110 | 160 | 0 | M8 | 3.5 | 215 | 180 | 250 | 0 | 15 | 4 | 165 | 130 | 200 | 0 | M10 | 3. | 165 | 130 | 200 | 0 | 12 | 3.5 |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 3 | 132 | 12 | 1-M25×1.5 | 252 | 260 | 192 | 324 | 455 | 152 | 130 | 200 | 0 | M10 | 3.5 | 265 | 230 | 300 | 0 | 15 | 4 | 215 | 180 | 250 | 0 | M12 | 4 | 215 | 180 | 250 | 0 | 15 | 4 |
| 132M | 216 | 175 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 1-M25×1.5 | 252 | 260 | 192 | 324 | 455 | 152 | 130 | 200 | 0 | M10 | 3.5 | 265 | 230 | 300 | 0 | 15 | 4 | 215 | 180 | 250 | 0 | M12 | 4 | 215 | 180 | 250 | 0 | 15 | 4 |
| 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 1-M32×1.5 | 290 | 315 | 230 | 390 | 650 | 215 | 180 | 250 | 0 | M12 | 4 | 300 | 350 | 350 | 0 | 19 | 5 | - | - | - | - | - | - | - | - | - | - | - | - |
| 160L | 254 | 245 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 1-M32×1.5 | 290 | 315 | 230 | 390 | 650 | 215 | 180 | 250 | 0 | M12 | 4 | 300 | 350 | 350 | 0 | 19 | 5 | - | - | - | - | - | - | - | - | - | - | - | |
