DEUTZ Series Diesel Generator Sets
.jpg)
.jpg)
.jpg)
Detailed Product Description
1. Closed Water Cooled Deutz Diesel Generator Set Open Type
2. compact structure, fine quality, reliable capability
3.Certificate: ISO/CE/CCC
4. Could be made as soundproof silent type

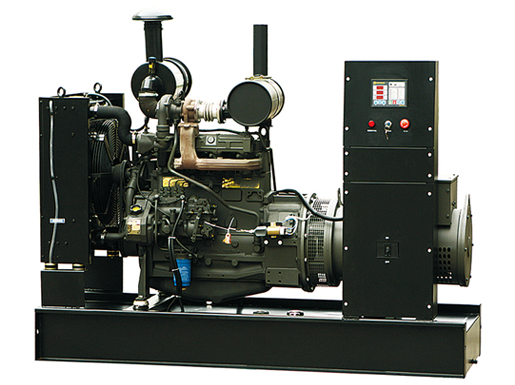

Closed Water Cooled Deutz Diesel Generator Set Open Type
GF2-DEUTZ series diesel generator sets, adopt DEUTZ series low power diesel engine made by Sino-Germany Joint-venture Company in China. The DEUTZ engines are 4-cycle, water-cooled, 24VDC working voltage for control system, adopt circumvolve fuel filter & oil filter cleaner, dry air cleaner, compact structure, fine quality, reliable capability.
(Could be made as soundproof silent type)
1. Closed Water Cooled Deutz Diesel Generator Set Open Type
2. compact structure, fine quality, reliable capability
3.Certificate: ISO/CE/CCC
4. Could be made as soundproof silent type
Closed Water Cooled Deutz Diesel Generator Set Open Type
GF2-DEUTZ series diesel generator sets, adopt DEUTZ series low power diesel engine made by Sino-Germany Joint-venture Company in China. The DEUTZ engines are 4-cycle, water-cooled, 24VDC working voltage for control system, adopt circumvolve fuel filter & oil filter cleaner, dry air cleaner, compact structure, fine quality, reliable capability.
(Could be made as soundproof silent type)
| Generator Set Technical Specification | ||||||||
| Generator Set | DEUTZ Engine | Stamford Alternator | ||||||
| Genset model | Prime power | Standby power | Fre. | Engine Model | Power | Alternator Model | ||
| KW | KVA | KW | KVA | HZ | kw | |||
| GF/GFS-D20KW | 20 | 25 | 22 | 27.5 | 50 | D226B-3D | 30 | PI144E |
| GF/GFS-D24KW | 24 | 30 | 26.4 | 33 | 50 | D226B-3D | 30 | PI144G |
| GF/GFS-D40KW | 40 | 50 | 44 | 55 | 50 | WP4D66E200 | 60 | UCI224D |
| GF/GFS-D50KW | 50 | 62.5 | 55 | 68.75 | 50 | WP4D66E200 | 60 | UCI224E |
| GF/GFS-D68KW | 68 | 85 | 74.8 | 93.5 | 50 | WP4D100E200 | 90 | UCI224G |
| GF/GFS-D80KW | 80 | 100 | 88 | 110 | 50 | WP4D100E200 | 90 | UCI274C |
| GF/GFS-D90KW | 90 | 112.5 | 99 | 123.75 | 50 | WP4D118E200 | 100 | UCI274D |
| GF/GFS-D100KW | 100 | 125 | 110 | 137.5 | 50 | WP6D132E200 | 120 | UCI274D |
| GF/GFS-D120KW | 120 | 150 | 132 | 165 | 50 | WP6D152E200 | 138 | UCI274F |
| GF/GFS-D24KW | 24 | 30 | 26.4 | 33 | 60 | D226B-3D | 37 | P1144E |
| GF/GFS-D30KW | 30 | 37.5 | 33 | 41.25 | 60 | D226B-3D | 37 | PI144G |
| GF/GFS-D34KW | 34 | 42.5 | 37.4 | 46.75 | 60 | TD226B-3D | 51 | PI144H |
| GF/GFS-D40KW | 40 | 50 | 44 | 55 | 60 | TD226B-3D | 51 | PI144J |
| GF/GFS-D50KW | 50 | 62.5 | 55 | 68.75 | 60 | WP4D66E201 | 60 | UCI224D |
| GF/GFS-D80KW | 80 | 100 | 88 | 110 | 60 | WP4D100E201 | 90 | UCI224G |
| GF/GFS-D90KW | 90 | 112.5 | 99 | 123.75 | 60 | WP4D118E201 | 108 | UC274C |
| GF/GFS-D96KW | 96 | 120 | 105.6 | 132 | 60 | WP4D118E201 | 108 | UC274C |
| GF/GFS-D100KW | 100 | 125 | 110 | 137.5 | 60 | WP6D132E201 | 120 | UCI274D |
| GF/GFS-D120KW | 120 | 150 | 132 | 165 | 60 | WP6D158E201 | 144 | UCI274E |
| GF/GFS-D128KW | 128 | 160 | 140.8 | 176 | 60 | WP6D158E201 | 144 | UCI274E |
| GF/GFS-D140KW | 140 | 175 | 154 | 192.5 | 60 | WP6D180E201 | 180 | UCI274E |
