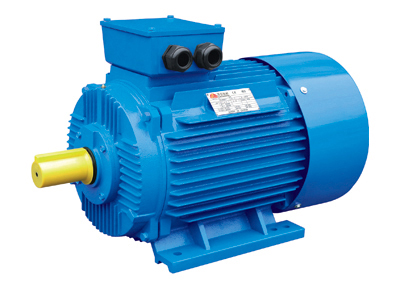

Y2(IE2) THREE PHASE CAST IRON MOTOR

  • Y2(IE2) THREE PHASE CAST IRON MOTOR

Adopting the national uniform design ,Y2(IE2) series three - phase induction motor are conformity with IEC34 - 1 and JB / T 8680. 1-1998 standards. It possess sophisticated features such as new construction , good appearance , slight vibration , low noise etc.
Protection class ：IP44 / IP55
Insulation class ：F / H
Cooling method ：ICO141


Operating conditions:
Ambient temperature ： -15℃≤~≤40℃
Altitude ：not exceed 1000 m
Rated voltage ：380V or any voltage between 220V - 760V
Duty : S1 (continuous)
Connection :Star - connection for up to 3KW , delta - connection for 4KW and above

TECHNICAL DATA OF IE2 SERIES
Frame
reference
and size 		Rated
power 		Full load
sreed in
revolutions
per minute 		Full load
current at
rated voltage 		Efficiency Power
factor 		Direct on
line starting
torque ratio 		Direct on
line starting
current ratio 		Direct on
line pull
out torque
ratio 		Mean sound
pressure level
@ 1m on
no load 		Voltage
NO. Type Output
kW 		Speed Amps EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise LwdB Voltage
r/min A % cosφ （A） V
1 IE2-801-2 0.75 2850 1.7 77.4 0.82 2.3 6.8 2.3 62 400
2 IE2-802-2 1.1 2870 2.4 79.6 0.83 2.3 7.1 2.3 62 400
3 IE2-90S-2 1.5 2880 3.2 81.3 0.84 2.3 7.3 2.3 67 400
4 IE2-90L-2 2.2 2880 4.5 83.2 0.85 2.3 7.6 2.3 67 400
5 IE2-100L1-2 3 2880 5.9 84.6 0.87 2.2 7.8 2.3 74 400
6 IE2-112M-2 4 2900 7.6 85.8 0.88 2.3 8.1 2.3 77 400
7 IE2-132S1-2 5.5 2910 10.4 87 0.88 2.2 8.2 2.3 79 400
8 IE2-132S2-2 7.5 2910 13.8 88.1 0.89 2.2 7.8 2.3 79 400
9 IE2-160M1-2 11 2940 20 89.4 0.89 2.2 7.9 2.3 81 400
10 IE2-160M2-2 15 2940 26.9 90.3 0.89 2.2 8 2.3 81 400
11 IE2-160L-2 18.5 2940 33 90.9 0.89 2.2 8 2.3 81 400
12 IE2-180M-2 22 2950 39.1 91.3 0.89 2.2 8.1 2.3 83 400
13 IE2-200L1-2 30 2960 52.9 92 0.89 2 7.5 2.3 84 400
14 IE2-200L2-2 37 2960 64.9 92.5 0.89 2 7.5 2.3 84 400
15 IE2-225M-2 45 2960 78.6 92.9 0.89 2.2 7.5 2.3 86 400
16 IE2-250M-2 55 2970 96 93.2 0.89 2.2 7.6 2.3 89 400
17 IE2-280S-2 75 2975 130 93.8 0.89 2 6.9 2.3 91 400
18 IE2-280M-2 90 2975 155 94.1 0.89 2 6.9 2.3 91 400
19 IE2-315S-2 110 2975 187 94.3 0.9 2 7 2.2 92 400
20 IE2-315M-2 132 2975 224 94.6 0.9 2 7 2.2 92 400
21 IE2-315L1-2 160 2975 268 94.8 0.91 2 7.1 2.2 92 400
22 IE2-315L2-2 200 2975 334 95 0.91 2 7.1 2.2 92 400
23 IE2-355M-2 250 2980 418 95 0.91 1.6 7.1 2.2 100 400
24 IE2-355L-2 315 2980 526 95 0.91 1.6 7.2 2.2 100 400
25 IE2-802-4 0.75 1420 1.8 79.6 0.76 2.3 6.4 2.3 56 400
26 IE2-90S-4 1.1 1420 2.6 81.4 0.77 2.3 6.6 2.3 59 400
27 IE2-90L-4 1.5 1420 3.5 82.8 0.78 2.3 6.7 2.3 59 400
28 IE2-100L1-4 2.2 1440 4.7 84.3 0.8 2.3 7.3 2.3 64 400
29 IE2-100L2-4 3 1440 6.2 85.5 0.81 2.3 7.5 2.3 64 400
30 IE2-112M-4 4 1445 8.1 86.6 0.81 2.3 7.5 2.3 65 400
31 IE2-132S-4 5.5 1450 11.1 87.7 0.82 2 7.5 2.3 71 400
32 IE2-132M-4 7.5 1450 14.7 88.7 0.83 2 7.3 2.3 71 400
33 IE2-160M-4 11 1470 21.3 89.8 0.83 2.2 7.4 2.3 73 400
34 IE2-160L-4 15 1470 28.4 90.6 0.84 2.2 7.5 2.3 73 400
35 IE2-180M-4 18.5 1470 34.4 91.2 0.85 2.2 7.6 2.3 76 400
36 IE2-180L-4 22 1470 40.8 91.6 0.85 2.2 7.7 2.3 76 400
37 IE2-200L-4 30 1470 55.2 92.3 0.85 2.2 7.1 2.3 76 400
38 IE2-225S-4 37 1480 67 92.7 0.86 2.2 7.3 2.3 78 400
39 IE2-225M-4 45 1480 81.1 93.1 0.86 2.2 7.3 2.3 78 400
40 IE2-250M-4 55 1480 99 93.5 0.86 2.2 7.3 2.3 79 400
41 IE2-280S-4 75 1480 132 94 0.87 2.2 6.8 2.3 80 400
42 IE2-280M-4 90 1480 157 94.2 0.88 2.2 6.9 2.3 80 400
43 IE2-315S-4 110 1480 189 94.5 0.89 2.1 6.9 2.2 88 400
44 IE2-315M-4 132 1480 226 94.7 0.89 2.1 6.9 2.2 88 400
45 IE2-315L1-4 160 1480 270 94.9 0.9 2.2 6.9 2.2 88 400
46 IE2-315L2-4 200 1480 337 95.1 0.9 2.1 6.9 2.2 88 400
47 IE2-355M-4 250 1490 422 95.1 0.9 2.1 6.9 2.2 95 400
48 IE2-355L-4 315 1490 531 95.1 0.9 2.1 6.9 2.2 95 400
49 IE2-90S-6 0.75 930 2 75.9 0.71 2 5.8 2.1 57 400
50 IE2-90L-6 1.1 930 2.8 78.1 0.72 2 5.9 2.1 57 400
51 IE2-100L1-6 1.5 930 3.7 79.8 0.72 2 5.9 2.1 61 400
52 IE2-112M-6 2.2 945 5.4 81.8 0.72 2.1 6.2 2.1 65 400
53 IE2-132S-6 3 960 7.1 83.3 0.72 2 6.4 2.1 69 400
54 IE2-132M1-6 4 965 9.2 84.6 0.74 2 6.6 2.1 69 400
55 IE2-132M2-6 5.5 965 12.3 86 0.75 2 6.8 2.1 69 400
56 IE2-160M-6 7.5 970 15.9 87.2 0.78 2.1 6.8 2.1 73 400
57 IE2-160L-6 11 970 22.7 88.7 0.79 2.1 6.9 2.1 73 400
58 IE2-180L-6 15 980 29.8 89.7 0.81 2 7.3 2.1 73 400
59 IE2-200L1-6 18.5 980 36.5 90.4 0.81 2.1 7.2 2.1 73 400
60 IE2-200L2-6 22 980 43.1 90.9 0.81 2.1 7.3 2.1 73 400
61 IE2-225M-6 30 980 57.6 91.7 0.82 2 6.8 2.1 74 400
62 IE2-250M-6 37 980 69.8 92.2 0.83 2.1 7 2.1 76 400
63 IE2-280S-6 45 980 82 92.7 0.85 2.1 7.2 2 78 400
64 IE2-280M-6 55 980 100 93.1 0.85 2.1 7.2 2 78 400
65 IE2-315S-6 75 990 136 93.7 0.85 2 6.5 2 83 400
66 IE2-315S-6 90 990 163 94 0.85 2 6.6 2 83 400
67 IE2-315M-6 110 990 198 94.3 0.85 2 6.6 2 83 400
68 IE2-315L1-6 132 990 234 94.6 0.86 2 6.6 2 83 400
69 IE2-315L2-6 160 990 283 94.8 0.86 1.9 6.7 2 85 400
70 IE2-355M2-6 200 990 353 95 0.86 2 6.8 2 85 400
71 IE2-355L-6 250 990 442 95 0.86 2 6.8 2 85 400

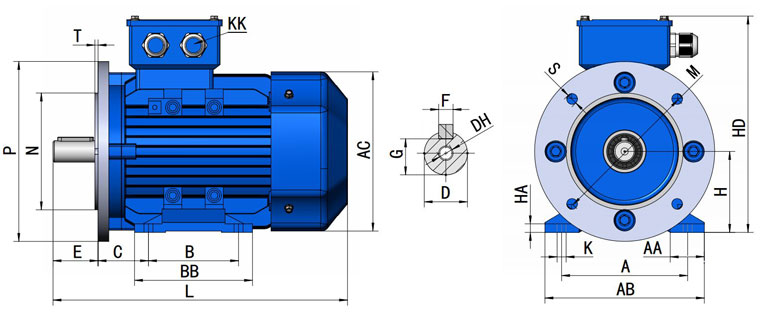

FRAME WITH FEET AND END-SHIELD WITH FLANGE(IM B35)
FRAME POLES A A/2 B C D E F G H K M N P S T FLANGE AB AC AD HD L DH*
SIZE HOLES
80 2 4 6 125 62.5 100 50 19 40 6 16 80 10 165 130 200 12 3.5 4 153 157 140 220 295 M6×l6
90S 2 4 6 140 70 100 56 24 50 8 20 90 10 165 130 200 12 3.5 4 177 177 150 240 327 M8×l9
90L 2 4 6 140 72 125 56 24 50 8 20 90 10 165 130 200 12 3.5 4 177 177 150 240 357 M8×l9
100L 2 4 6 160 80 140 63 28 60 8 24 100 12 215 180 250 15 4 4 196 197 167 267 403 M10×22
112M 2 4 6 190 95 140 70 28 60 8 24 112 12 215 180 250 15 4 4 226 219 177 289 430 M10×22
132S 2 4 6 216 108 140 30 38 30 10 33 132 12 265 230 300 15 4 4 260 258 196 328 460 M12×28
132M 2 4 6 216 108 178 30 38 80 10 33 132 12 265 230 300 15 4 4 260 258 196 328 499 M12×28
160M 2 4 6 254 127 210 108 42 110 12 37 160 15 300 250 350 19 5 4 314 314 255 415 615 M16×36
160L 2 4 6 254 127 254 108 42 110 12 37 160 15 300 250 350 19 5 4 314 314 255 415 660 M16×36
180M 2 4 6 279 140 241 121 48 112 14 43 180 15 300 250 350 19 5 4 355 356 270 450 700 M16×36
180L 2 4 6 279 140 279 121 48 110 14 43 180 15 300 250 350 19 5 4 355 356 270 450 740 M16×36
200L 2 4 6 318 159 305 133 55 110 16 49 200 19 350 300 400 19 5 4 395 397 302 502 770 M20×42
225S 4 356 178 286 149 60 140 18 53 225 19 400 350 450 19 5 8 435 445 323 548 815 M20×42
225M 2 356 178 311 149 55 110 16 49 225 19 400 350 450 19 5 8 435 445 323 548 825 M20×42
4 6 356 178 311 149 60 142 18 53 225 19 400 350 450 19 5 8 435 445 323 548 845 M20×42
250M 2 406 203 349 168 60 140 18 53 250 24 500 450 550 19 5 8 490 485 372 622 920 M20×42
4 6 406 203 349 168 65 140 18 58 250 24 500 450 550 19 5 8 490 485 372 622 920 M20×42
280S 2 457 229 368 190 65 140 18 58 280 24 500 450 550 19 5 8 542 546 390 670 991 M20×42
4 6 457 229 368 190 75 140 20 68 280 24 500 450 550 19 5 8 542 546 390 670 991 M20×42
280M 2 457 229 419 190 65 140 18 58 280 24 500 450 550 19 5 8 542 546 390 670 1046 M20×42
4 6 457 229 419 190 75 140 20 68 280 24 500 450 550 19 5 8 542 546 390 670 1046 M20×42
315S 2 508 254 406 216 65 140 18 58 315 28 600 550 660 24 6 8 628 620 540 855 1185 M20×42
4 6 508 254 406 216 80 170 22 71 315 28 600 550 660 24 6 8 628 620 540 855 1220 M20×42
315M 2 508 254 457 216 65 140 18 58 315 28 600 550 660 24 6 8 628 620 540 855 1290 M20×42
4 6 508 254 457 216 80 170 22 71 315 28 600 550 660 24 6 8 628 620 540 855 1325 M20×42
315L 2 508 254 508 216 65 140 18 58 315 28 600 550 660 24 6 8 628 620 540 855 1290 M20×42
4 6 508 254 508 216 80 170 22 71 315 28 600 550 660 24 6 8 628 620 540 855 1325 M20×42
355M 2 610 305 560 254 75 140 20 68 355 28 740 680 800 24 6 8 726 700 647 1002 1484 M20×42
4 6 610 305 560 254 95 170 25 86 355 28 740 680 800 24 6 8 726 700 647 1002 1514 M20×42
355L 2 610 305 630 254 75 140 20 68 355 28 740 680 800 24 6 8 726 700 647 1002 1484 M20×42
4 6 610 305 630 254 95 170 25 86 355 28 740 680 800 24 6 8 726 700 647 1002 1514 M20×42
