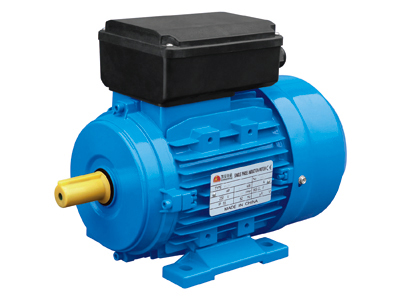

ML SERIES SINGLE-PHASE DUAL-CAPACITOR MOTOR
- Location :
- Home
- >Products
- >Electric Motor
- >Aluminum Housing Motor
.jpg)
Conform to the IECstandard . Be made of selected quality materials , lastest design in entirety . Good performance , low noise , little vibration ,and safety and reliable operation . Nice appearance , light weight . Be maintainde very conveniently , simple construction . Good general performance , 1.8 to 2.5 times more than the rated torque .
Operating conditions：
Ambient temperature： -15℃≤~≤40℃
Altitude ：not exceed 1000m
| Model |
Power (KW) |
Voltage (V) |
Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Tstart/Tn |
Tmax/Tn |
Ist/In (A) |
|
ML711-2 |
0.37 |
220 |
2.73 |
2800 |
67 |
0.92 |
2.3 |
1.8 |
16 |
|
ML712-2 |
0.55 |
220 |
3.88 |
2800 |
70 |
0.92 |
2.5 |
1.8 |
21 |
|
ML801-2 |
0.75 |
220 |
5.15 |
2800 |
72 |
0.92 |
2.5 |
1.8 |
30 |
|
ML802-2 |
1.10 |
220 |
7.02 |
2800 |
75 |
0.95 |
2.5 |
1.8 |
40 |
|
ML90S-2 |
1.50 |
220 |
9.44 |
2800 |
76 |
0.95 |
2.5 |
1.8 |
55 |
|
ML90L-2 |
2.20 |
220 |
13.67 |
2800 |
77 |
0.95 |
2.5 |
1.8 |
80 |
|
ML100L-2 |
3.00 |
220 |
18.2 |
2800 |
79 |
0.95 |
2.5 |
1.8 |
110 |
|
ML711-4 |
0.25 |
220 |
1.99 |
1400 |
62 |
0.92 |
2.5 |
1.8 |
12 |
|
ML712-4 |
0.37 |
220 |
2.81 |
1400 |
65 |
0.92 |
2.5 |
1.8 |
16 |
|
ML801-4 |
0.55 |
220 |
4.0 |
1400 |
68 |
0.92 |
2.5 |
1.8 |
21 |
|
ML802-4 |
0.75 |
220 |
5.22 |
1400 |
71 |
0.92 |
2.5 |
1.8 |
30 |
|
ML90S-4 |
1.10 |
220 |
7.2 |
1400 |
73 |
0.95 |
2.5 |
1.8 |
40 |
|
ML90L-4 |
1.50 |
220 |
9.57 |
1400 |
75 |
0.95 |
2.5 |
1.8 |
55 |
|
ML100L1-4 |
2.20 |
220 |
13.9 |
1400 |
76 |
0.95 |
2.5 |
1.8 |
80 |
|
ML100L2-4 |
3.00 |
220 |
18.6 |
1400 |
77 |
0.95 |
2.5 |
1.8 |
110 |

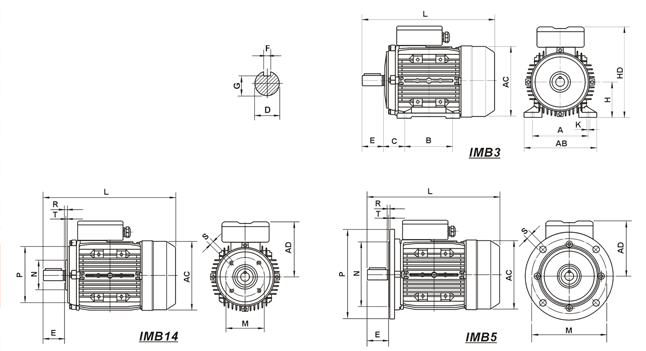

Overall & Installation Dimensions
| Frame Size |
Mounting Dimensions(mm) |
Frame Dimensions(mm) |
||||||||||||||||||||||||
|
|
IMB14 |
IMB5 |
||||||||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L |
|
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
85 |
70 |
105 |
0 |
M6 |
2.5 |
130 |
110 |
160 |
0 |
10 |
3.5 |
145 |
145 |
125 | 205 |
255 |
|
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
100 |
80 |
120 |
0 |
M6 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
160 |
160 |
135 | 235 |
295 |
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
180 |
145 | 265 |
335 |
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
180 |
145 | 265 |
360 |
|
100L |
16 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
- |
- |
- |
- |
- |
- |
215 |
180 |
250 |
0 |
15 |
4.0 |
205 |
205 |
170 | 280 |
380 |
