MY SINGLE PHASE ALUMINIUM HOUSING MOTOR
- Location :
- Home
- >Products
- >Electric Motor
- >Aluminum Housing Motor

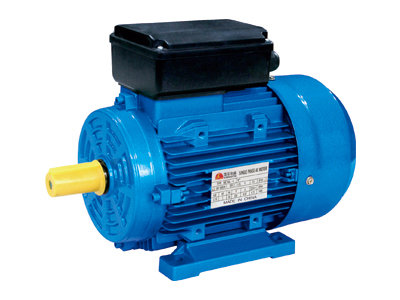

.jpg)
This series motors can be used on household appliance, pumps, fans and recording meters, etc.
Operating Conditions:
|
Model
|
Output |
Voltage |
Current |
Speed |
Eff |
Power Factor |
Tstart/Tn |
Tmax/Tn |
Ist/In(A) |
|
| KW | HP | |||||||||
|
MY631-2 |
0.18 |
0.25 |
220 |
1.48 |
2800 |
60 |
0.92 |
0.4 |
1.7 |
5 |
|
MY632-2 |
0.25 |
0.34 |
220 |
1.96 |
2800 |
63 |
0.92 |
0.4 |
1.7 |
7 |
|
MY711-2 |
0.37 |
0.5 |
220 |
2.73 |
2800 |
67 |
0.92 |
0.35 |
1.7 |
10 |
|
MY712-2 |
0.55 |
0.75 |
220 |
3.88 |
2800 |
70 |
0.92 |
0.35 |
1.7 |
15 |
|
MY801-2 |
0.75 |
1 |
220 |
5.15 |
2800 |
72 |
0.92 |
0.33 |
1.7 |
20 |
|
MY802-2 |
1.10 |
1.5 |
220 |
7.02 |
2800 |
75 |
0.95 |
0.33 |
1.7 |
30 |
|
MY90S-2 |
1.50 |
2 |
220 |
9.44 |
2800 |
76 |
0.95 |
0.30 |
1.7 |
45 |
|
MY90L-2 |
2.20 |
3 |
220 |
13.67 |
2800 |
77 |
0.95 |
0.30 |
1.7 |
65 |
|
MY631-4 |
0.12 |
0.16 |
220 |
1.10 |
1400 |
55 |
0.90 |
0.4 |
1.7 |
3.5 |
|
MY632-4 |
0.18 |
0.25 |
220 |
1.62 |
1400 |
56 |
0.90 |
0.4 |
1.7 |
5 |
|
MY711-4 |
0.25 |
0.34 |
220 |
2.02 |
1400 |
61 |
0.92 |
0.35 |
1.7 |
7 |
|
MY712-4 |
0.37 |
0.5 |
220 |
2.95 |
1400 |
62 |
0.92 |
0.35 |
1.7 |
10 |
|
MY801-4 |
0.55 |
0.75 |
220 |
4.25 |
1400 |
64 |
0.92 |
0.35 |
1.7 |
15 |
|
MY802-4 |
0.75 |
1 |
220 |
5.45 |
1400 |
68 |
0.92 |
0.32 |
1.7 |
20 |
|
MY90S-4 |
1.10 |
1.5 |
220 |
7.45 |
1400 |
71 |
0.95 |
0.32 |
1.7 |
30 |
|
MY90L-4 |
1.50 |
2 |
220 |
9.83 |
1400 |
73 |
0.95 |
0.3 |
1.7 |
45 |

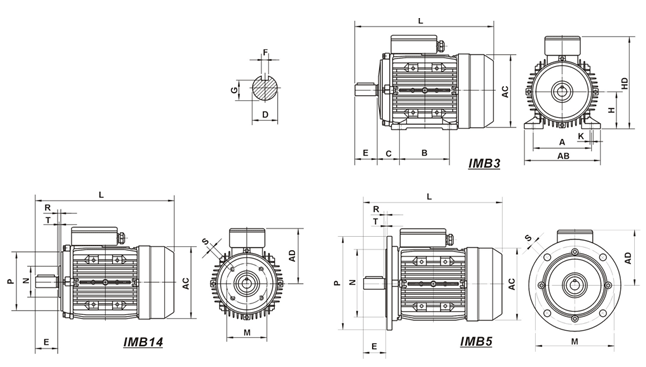

Overall & Installation Dimensions
|
Frame Size
|
Mounting Dimensions(mm) |
Frame Dimensions(mm) |
||||||||||||||||||||||||
|
|
IMB14 |
IMB5 |
||||||||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L |
|
|
63 |
100 |
80 |
40 |
11 |
23 |
4 |
8.5 |
63 |
7 |
75 |
60 |
90 |
0 |
M5 |
2.5 |
115 |
95 |
140 |
0 |
10 |
3.0 |
130 |
130 |
115 | 185 |
230 |
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
85 |
70 |
105 |
0 |
M6 |
2.5 |
130 |
110 |
160 |
0 |
10 |
3.5 |
145 |
145 |
125 | 205 |
255 |
|
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
100 |
80 |
120 |
0 |
M6 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
160 |
160 |
135 | 235 |
295 |
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
180 |
145 | 265 |
335 |
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
180 |
145 | 265 |
360 |
