MC SINGLE PHASE ALUMINIUM HOUSING MOTOR
- Location :
- Home
- >Products
- >Electric Motor
- >Aluminum Housing Motor

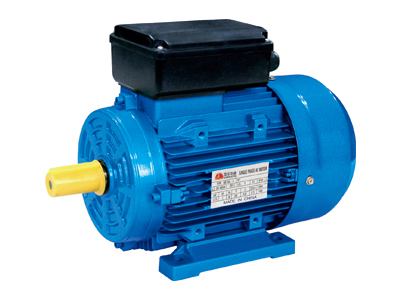

.jpg)
Conform to the IECstandard . Be made of selected quality materials , lastest design in entirety . Good performance , low noise , little vibration ,and safety and reliable operation . Nice appearance , light weight . Be maintainde very conveniently , simple construction . Higher starting torque , 2.5times more than the rated torque . Be used in a multitude of application the higher staring torque is demanded , such as air-compressors , pumps , refrigerators , medical apparatus , instruments , and many other machines needing full-load start.
Operating conditions：
Ambient temperature ：-15℃≤~≤40℃
Altitude : not exceed 1000 m
Rated voltage ：220V - 720V
| Model |
Output |
Voltage |
Current |
Speed |
Eff |
Power Factor |
Tstart/Tn |
Tmax/Tn |
Ist/In(A) |
|
| KW | HP | |||||||||
|
MC711-2 |
0.18 | 0.25 |
220 |
1.89 |
2800 |
60 |
0.72 |
3.0 |
1.8 |
12 |
|
MC712-2 |
0.25 | 0.34 |
220 |
2.40 |
2800 |
64 |
0.74 |
3.0 |
1.8 |
15 |
|
MC801-2 |
0.37 | 0.5 |
220 |
3.36 |
2800 |
65 |
0.77 |
2.8 |
1.8 |
21 |
|
MC802-2 |
0.55 | 0.75 |
220 |
4.65 |
2800 |
68 |
0.79 |
2.8 |
1.8 |
29 |
|
MC90S-2 |
0.75 | 1 |
220 |
6.09 |
2800 |
70 |
0.80 |
2.5 |
1.8 |
37 |
|
MC90L-2 |
1.1 | 1.5 |
220 |
8.68 |
2800 |
72 |
0.80 |
2.5 |
1.8 |
60 |
|
MC100L1-2 |
1.5 | 2 |
220 |
11.38 |
2900 |
74 |
0.81 |
2.5 |
1.8 |
80 |
|
MC100L2-2 |
2.2 | 3 |
220 |
16.48 |
2900 |
75 |
0.81 |
2.2 |
1.8 |
120 |
|
MC112M-2 |
3 | 4 |
220 |
21.88 |
2900 |
76 |
0.82 |
2.2 |
1.8 |
150 |
|
MC711-4 |
0.12 | 0.16 |
220 |
1.88 |
1400 |
50 |
0.58 |
3.0 |
1.8 |
9 |
|
MC712-4 |
0.18 | 0.25 |
220 |
2.49 |
1400 |
53 |
0.62 |
2.8 |
1.8 |
12 |
|
MC801-4 |
0.25 | 0.34 |
220 |
3.11 |
1400 |
58 |
0.63 |
2.8 |
1.8 |
15 |
|
MC802-4 |
0.37 | 0.5 |
220 |
4.24 |
1400 |
62 |
0.64 |
2.5 |
1.8 |
21 |
|
MC90S-4 |
0.55 | 0.75 |
220 |
5.49 |
1400 |
66 |
0.69 |
2.5 |
1.8 |
29 |
|
MC90L-4 |
0.75 | 1 |
220 |
6.87 |
1400 |
68 |
0.73 |
2.5 |
1.8 |
37 |
|
MC100L1-4 |
1.1 | 1.5 |
220 |
9.52 |
1450 |
71 |
0.74 |
2.5 |
1.8 |
60 |
|
MC100L2-4 |
1.5 | 2 |
220 |
12.45 |
1450 |
73 |
0.75 |
2.5 |
1.8 |
80 |
|
MC112M-4 |
2.2 | 3 |
220 |
17.78 |
1450 |
74 |
0.76 |
2.2 |
1.8 |
120 |

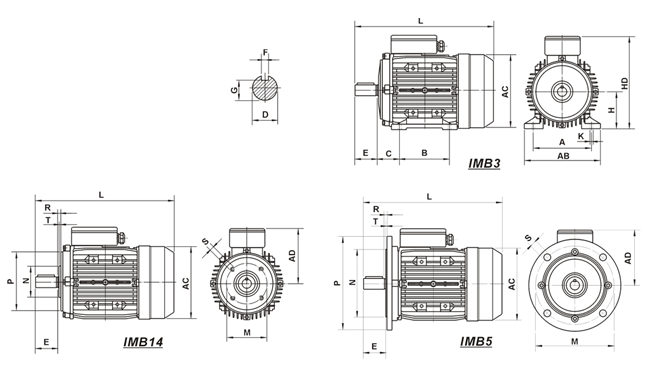

Overall & Installation Dimensions
| Frame Size |
Mounting Dimensions(mm) |
Frame Dimensions(mm) |
||||||||||||||||||||||||
|
|
IMB14 |
IMB5 |
||||||||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L |
|
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
85 |
70 |
105 |
0 |
M6 |
2.5 |
130 |
110 |
160 |
0 |
10 |
3.5 |
145 |
145 |
125 | 205 |
255 |
|
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
100 |
80 |
120 |
0 |
M6 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
160 |
160 |
135 | 235 |
295 |
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
180 |
145 | 265 |
335 |
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
0 |
M8 |
3.0 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
180 |
145 | 265 |
360 |
|
100L |
16 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
- |
- |
- |
- |
- |
- |
215 |
180 |
250 |
0 |
15 |
4.0 |
205 |
205 |
170 | 280 |
380 |
|
112M |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
- |
- |
- |
- |
- |
- |
215 |
180 |
250 |
0 |
15 |
4.0 |
245 |
240 |
180 | 310 |
400 |
