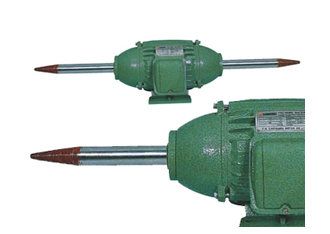

YJP Cast Iron Housing Motor

YJP series single-phase, three-phase asynchronous motor polishing machine is to use directly out of the rotor shaft, polishing wheel drive, all kinds of parts for grinding, polishing, and as the production of cutting all kinds of jewelry, polished. Belt can greatly reduce the cost of wear to be changed frequently. Can improve the efficiency of 20% or more. Easy to use, reasonable structure, excellent performance, small size, light weight, low power consumption characteristics.
Conditions of Use
The machine can be used not more than 1000 meters above sea level, ambient air relative humidity less than 95%, the maximum ambient temperature around the area does not exceed +40. Polishing Machine intolerance, chemical corrosion, and not exposed to the outdoors.

Model	Power (KW)		Current (A)	Voltage (V)	Speed (r/min)
Model	HP	KW	Current (A)	Voltage (V)	Speed (r/min)
YJP801-2	1	0.75	1.8	380	2830
YJP802-2	1.5	1.1	2.5	380	2830
YJP90S-2	2	1.5	3.4	380	2840
YJP90L-2	3	2.2	4.8	380	2840
YJP100L-2	4	3	6.4	380	2870
YJP112M-2	5.5	4	8.2	380	2890
YJP132S-2	7.5	5.5	11.1	380	2900
YJP132M-2	10	7.5	15	380	2900
YJP8-4	0.75	0.55	1.5	380	1390
YJP90S-4	1	0.75	2	380	1400
YJP90L-4	1.5	1.1	2.8	380	1400
YJP100L1-4	2	1.5	3.7	380	1430
YJP100L2-4	3	2.2	5	380	1430
YJP112M-4	4	3	6.8	380	1440
YJP132S1-4	5.5	4	8.8	380	1450
YJP132S2-4	7.5	5.5	12	380	1450

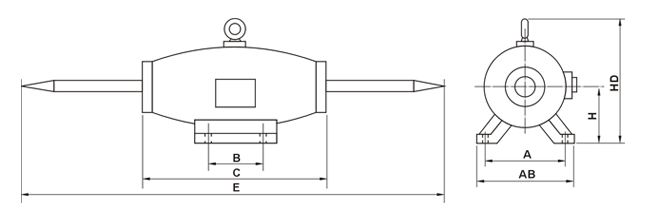

Overall & Installation Dimensions

Frame Size	A	B	C	E	H	AB	HD
YJP80	125	100	319	700	80	160	170
YJP90	140	125	368	830	90	180	190
YJP100	160	140	417	930	100	205	245
YJP112	190	140	417	980	112	245	265
YJP132S	216	140	502	1170	132	280	315
YJP132M	216	178	525	1170	132	280	315
