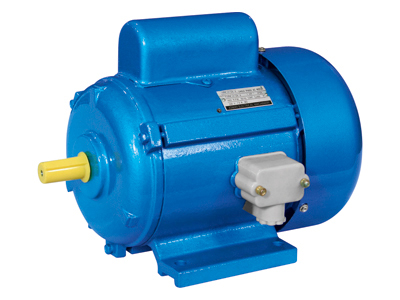

JY Series Single-phase capacitor start motor. These motors are suitable for the situation that require the higher starting torque and the limited starting current. The motors can be used on driving all kinds of small machine that need full load starting. The motors of this series are totally enclosed and fan cooled, possess No.09, No.1 and No.2 three frame size and with the starting capacitor on the top of the motor.
Operating Conditions:
Operating Conditions:
|
Model
|
Output
|
Voltage
(V) |
Current
(A) |
Freq.
(Hz) |
Power
factor |
Eff
(%) |
Speed
(r/min) |
Tstart/Tn
|
Ist/In
|
Tmax/Tn
|
|
|
HP
|
KW
|
||||||||||
|
JY09B-2
|
0.25
|
0.18
|
220
|
2.15
|
50
|
0.76
|
50
|
2800
|
3
|
6.5
|
1.8
|
|
JY09A-2
|
0.33
|
0.25
|
220
|
2.82
|
50
|
0.76
|
53
|
2800
|
3
|
6.5
|
1.8
|
|
JY1B-2
|
0.5
|
0.37
|
220
|
3.74
|
50
|
0.75
|
60
|
2800
|
3
|
6.5
|
1.8
|
|
JY1A-2
|
0.75
|
0.55
|
220
|
5.36
|
50
|
0.74
|
63
|
2800
|
3
|
7
|
1.8
|
|
JY2B-2
|
1
|
0.75
|
220
|
6.81
|
50
|
0.77
|
65
|
2800
|
2.8
|
7
|
1.8
|
|
JY2A-2
|
1.5
|
1.1
|
220
|
9.45
|
50
|
0.79
|
67
|
2800
|
2.8
|
7
|
1.8
|
|
JY09B-4
|
0.18
|
0.12
|
220
|
1.7
|
50
|
0.63
|
48
|
1400
|
2.8
|
7
|
1.8
|
|
JY09A-4
|
0.25
|
0.18
|
220
|
2.52
|
50
|
0.65
|
50
|
1400
|
2.8
|
6.5
|
1.8
|
|
JY1B-4
|
0.33
|
0.25
|
220
|
3.2
|
50
|
0.67
|
53
|
1400
|
2.8
|
6.5
|
1.8
|
|
JY1A-4
|
0.5
|
0.37
|
220
|
4.03
|
50
|
0.72
|
58
|
1400
|
2.8
|
7
|
1.8
|
|
JY2B-4
|
0.75
|
0.55
|
220
|
5.12
|
50
|
0.74
|
66
|
1400
|
2.8
|
7
|
1.8
|
|
JY2A-4
|
1
|
0.75
|
220
|
6.9
|
50
|
0.76
|
68
|
1400
|
2.8
|
7
|
1.8
|

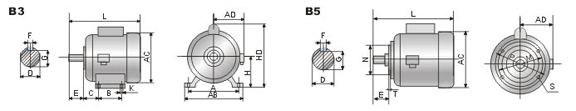

Overall & Installation Dimensions
.jpg)
|
Frame
size
|
Mounting Dimension
|
Overall Dimension
|
|||||||||||||||||||
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
AE
|
HD
|
L
|
|
|
2#
|
160
|
112
|
63
|
19
|
40
|
6
|
16
|
100
|
12
|
115
|
95
|
140
|
0
|
M8
|
3
|
190
|
190
|
128
|
246
|
330
|
230
|
|
1#
|
140
|
100
|
56
|
16
|
40
|
5
|
13
|
90
|
10
|
100
|
80
|
120
|
0
|
M8
|
3
|
176
|
176
|
121
|
220
|
286
|
255
|
|
09#
|
125
|
100
|
50
|
14
|
30
|
4
|
12
|
80
|
10
|
85
|
70
|
105
|
0
|
M8
|
3
|
156
|
156
|
108
|
190
|
258
|
295
|
