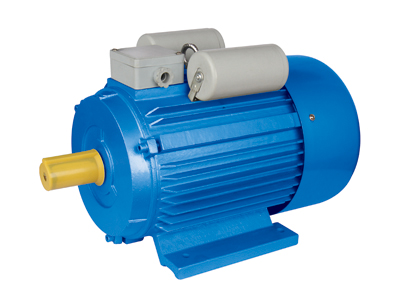

YCL SERIES SINGLE-PHASE ASYNCHRONOUS MOTOR

  • YCL SERIES SINGLE-PHASE ASYNCHRONOUS MOTOR

YCL series heavy-duty capacitor start and run, single phase induction motors  are suitable for driving small-size turning machine, especially suitable for household and workshop where only need single-phase power be supplied. This series motors are designed with advanced technique and made of quality materials. It also have following features: low noise, low temperature rise, small starting current, high starting torque, reliable operation, easy maintenance and nice appearance, they also meet the relative standards of IEC.
YCL series motors are similar to YC series in appearance. Comparing with the same output of YC series motors, YCL series temperature rise be reduced 8.74k on average, efficiency be increased 4.21%, power factor be increased 0.16.


Operating Conditions:
Ambient temperature: -15℃≤~≤40℃

 Altitude: not exceed 1000m

Rated voltage: ±5%

Model
Output
Current
(A)
Power
factor
Eff
(%)
Speed
(r/min)
Tstart/Tn
Ist/In
Tmax/Tn
kW HP
YCL90S-2
1.1
1.5
7.2
0.95
73.2
2880
2.8
6
1.8
YCL90L-2
1.5
2
8.9
0.97
76
2900
2.8
7
1.8
YCL100L-2
2.2
3
13.2
0.96
78.8
2900
3
6.5
1.8
YCL90S-4
0.75
1
5
0.93
73.3
1450
2.8
6.5
1.8
YCL90L-4
1.1
1.5
7.8
0.9
75
1450
2.5
6
1.8
YCL100L-4
1.5
2
9.3
0.92
79.4
1450
2.8
7
1.8
YCL112M-4
2.2
3
13.6
0.9
81.6
1450
2.3
6.5
1.8
YCL132S1-4
3
4
18.2
0.9
83.2
1450
2.1
6.5
1.8
YCL132S2-4
3.7
5
22
0.9
84.9
1450
2.1
6.5
1.8
YCL132M1-4
5.5
7.5
32.5
0.9
85
1460
2
6.5
1.8
YCL132M2-4
7.5
10
40
0.9
85.5
1460
2
6.5
1.8

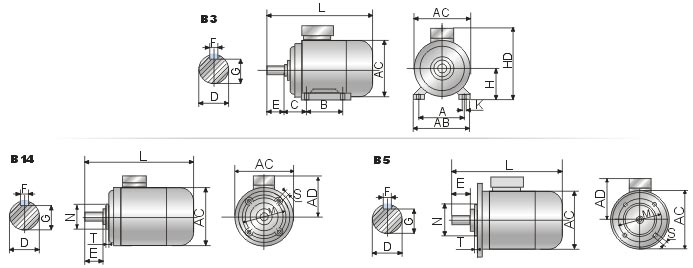

Overall & Installation Dimensions

Frame
size
Mounting Dimension
Overall Dimension
A
B
C
D
E
F
G
H
K
M
N
P
R
S
T
AB
AC
AD
HD
L
71
112
90
45
14
30
5
11
71
7
130
110
160
0
10
3.5
145
145
140
180
255
80
125
100
50
19
40
6
16
80
10
165
130
200
0
12
3.5
160
165
150
200
295
90S
140
100
56
24
50
8
20
90
10
165
130
200
0
12
3.5
180
185
160
240
370
90L
140
125
56
24
50
8
20
90
10
165
130
200
0
12
3.5
180
185
160
240
400
100L
160
140
63
28
60
8
24
100
12
215
180
250
0
15
4
205
220
180
260
430
112M
190
140
70
28
60
8
24
112
12
215
180
250
0
15
4
245
250
190
300
455
132S
216
140
89
38
80
10
33
132
12
265
230
300
0
15
4
280
290
210
350
525
132M
216
178
89
38
80
10
33
132
12
265
230
300
0
15
4
280
290
210
350
553
