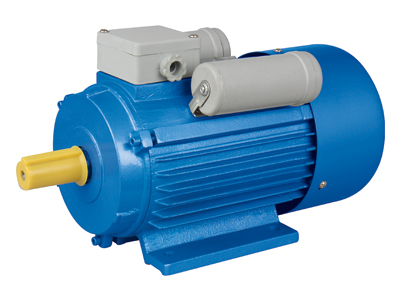

YC SINGLE PHASE HEAVY-DUTY CAPACITOR START MOTOR

  • YC SINGLE PHASE HEAVY-DUTY CAPACITOR START MOTOR

YC series heavy-duty single-phase motors are suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. This series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.
YC series motors are of IP44 totally enclosed fan-cooled (TEFC) type, capacitor starting for rated output up to 3HP, on rated voltage and 50Hz, the starting torque is three times more than the rated torque while 60Hz is 2.75 times more. Capacitors start and run type for Motors 4HP and above, it have following features: high starting torque, smooth running, low temperature rise, low noise and greater overload performance.

Operating Conditions:
Ambient temperature: -15℃≤~≤40℃

Altitude: not exceed 1000m

Rated voltage: ±5%

Model
Output
Current
(A)
Power
factor
Eff
(%) 		Speed
(r/min)
Tstart/Tn
Ist/In
Tmax/Tn
kW HP
YC711-2 0.18 1/4 1.9 0.7 63 2800 3 6.5 2
YC712-2 0.25 1/3 2.4 0.72 65 2800 3 6.5 2
YC80A-2 0.37 1/2 3.5 0.74 66 2840 3 6.5 2
YC80B-2 0.55 3/4 5.04 0.74 67 2850 3 6.5 2
YC80C-2 0.75 1 6.68 0.75 68 2850 3 6.5 2
YC90S-2 1.1 1.5 8.93 0.8 70 2850 2.8 7 2
YC90L-2 1.5 2 11.4 0.82 73 2870 2.8 7 2
YC100L-2 2.2 3 16.5 0.82 74 2900 2.5 7 2
YC112M1-2 3 4 21.4 0.84 76 2900 2.2 7 2
YC112M2-2 3.7 5 24.8 0.86 79 2900 2.2 7 2
YC711-4 0.12 1/6 1.9 0.58 48 1400 3 6 2
YC712-4 0.18 1/4 2.7 0.6 50 1400 3 6 2
YC80A-4 0.25 1/3 3.52 0.62 52 1400 3 6 2
YC80B-4 0.37 1/2 4.69 0.64 56 1400 3 6 2
YC80C-4 0.55 3/4 6 0.65 60 1400 3 6 2
YC90S-4 0.75 1 7.5 0.72 63 1400 2.8 6.5 2
YC90L-4 1.1 1.5 10.4 0.72 67 1420 2.8 6.5 2
YC100L-4 1.5 2 13 0.73 72 1440 2.8 6.5 2
YC112M-4 2.2 3 18.5 0.74 73 1450 2.5 6.5 2
YC132S1-4 3 4 22.4 0.8 76 1450 2.2 6.5 2
YC132S2-4 3.7 5 26 0.82 79 1450 2.2 6.5 2

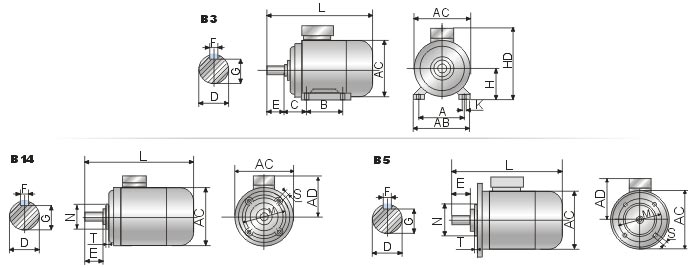

Overall & Installation Dimensions
Frame
size
Mounting Dimension
Overall Dimension
A
B
C
D
E
F
G
H
K
M
N
P
R
S
T
AB
AC
AD
HD
L
71
112
90
45
14
30
5
11
71
7
130
110
160
0
10
3.5
145
145
140
180
255
80
125
100
50
19
40
6
16
80
10
165
130
200
0
12
3.5
160
165
150
200
295
90S
140
100
56
24
50
8
20
90
10
165
130
200
0
12
3.5
180
185
160
240
370
90L
140
125
56
24
50
8
20
90
10
165
130
200
0
12
3.5
180
185
160
240
400
100L
160
140
63
28
60
8
24
100
12
215
180
250
0
15
4
205
220
180
260
430
112M
190
140
70
28
60
8
24
112
12
215
180
250
0
15
4
245
250
190
300
455
132S
216
140
89
38
80
10
33
132
12
265
230
300
0
15
4
280
290
210
350
525
132M
216
178
89
38
80
10
33
132
12
265
230
300
0
15
4
280
290
210
350
553
