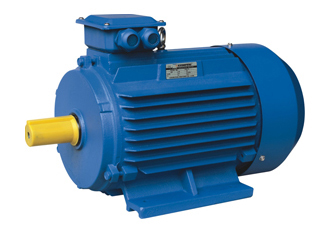

GOST STANDARD MOTOR

  • GOST STANDARD MOTOR

Gost Standard three -phase induction motors,are conformity with Gost R51689 standards,it's advantages with good performance ,nice appearance,light weight.

Operating conditions:
◎Ambient temperature :-15 ℃<~<40 ℃
◎Altitude :not exceed 1000 m
◎Rated voltage :220V - 720V
◎Rated frequency :50Hz / 60Hz
◎Protection class :IP54
◎Insulation class :F
◎Cooling method :ICO 141

◎Duty :S1(continuous)

◎Connection :Star -connection for up to 3KW ,delta - connection for 4KW and above

TECHNICAL DATA
Franme
reference
and size 		Full load
current at
rated voltage 		Rated
power 		Full load
speed in
revolutions
per minute 		Efficiency Power
factor 		Direct on
line starting
torque ratio 		Direct on
line pull
out torque
ratio 		Direct on
line starting
current ratio 		Mean sound
pressure level
@1m on
no load 		Weight Rotor
inertia
WK2
NO. Type 380V Output Speed EFF. P.F. Ts/Tn Tmax/Tn ls/ln Noise Weight J
A kW HP r/min % CosΦ LwdB(A) kg kgm2
1 GOST-71A-2 1.77 0.75 1.0 2840 75.0 0.83 2.2 2.3 6.1 67 8.7 0.0006
2 GOST-71B-2 2.61 1.1 1.5 2840 76.2 0.84 2.2 2.3 6.9 67 10.5 0.0008
3 GOST-80A-2 3.46 1.5 2.0 2850 78.5 0.84 2.2 2.3 7.0 72 13.0 0.0011
4 GOST-80B-2 4.85 2.2 3.0 2855 81.0 0.85 2.2 2.3 7.0 72 15.0 0.0018
5 GOST-90L-2 6.34 3.0 4.0 2860 82.6 0.87 2.2 2.3 7.5 76 17.0 0.0024
6 GOST-100S-2 8.20 4.0 5.5 2880 84.2 0.88 2.2 2.3 7.5 77 20.5 0.0070
7 GOST-100L-2 11.1 5.5 7.5 2900 85.7 0.88 2.2 2.3 7.5 80 28.0 0.0080
8 GOST-112M-2 14.9 7.5 10.0 2895 87.0 0.88 2.2 2.3 7.5 80 49.0 0.0185
9 GOST-132M-2 21.2 11.0 15.0 2900 88.4 0.89 2.2 2.3 7.5 86 54.0 0.2270
10 GOST-160S-2 28.6 15.0 20.0 2930 89.4 0.89 2.2 2.3 7.5 86 116 0.0500
11 GOST-160M-2 34.7 18.5 25.0 2930 90.0 0.90 2.2 2.3 7.5 86 130 0.0550
12 GOST-180S-2 41.0 22.0 30.0 2940 90.5 0.90 2.0 2.3 7.5 89 150 0.0620
13 GOST-180M-2 55.4 30.0 40.0 2950 91.4 0.90 2.0 2.3 7.5 92 170 0.0700
14 GOST-200M-2 67.9 37.0 50.0 2950 92.0 0.90 2.0 2.3 7.5 92 230 0.1400
15 GOST-200L-2 82.1 45.0 60.0 2960 92.5 0.90 2.0 2.3 7.5 92 255 0.1600
16 GOST-225M-2 100.0 55.0 75.0 2970 93.0 0.90 2.0 2.3 7.5 93 320 0.2000
17 GOST-250S-2 135.0 75.0 100.0 2975 93.6 0.90 2.0 2.3 7.0 94 450 0.3500
18 GOST-250M-2 160.0 90.0 125.0 2975 93.9 0.91 2.0 2.3 7.1 94 530 0.4000
19 GOST-280S-2 195.0 110.0 150.0 2975 94.0 0.91 1.8 2.2 7.1 96 650 0.6000
20 GOST-280M-2 233.0 132.0 180.0 2975 94.5 0.91 1.8 2.2 7.1 96 700 0.7000
21 GOST-315S-2 279.0 160.0 220.0 2975 94.6 0.92 1.8 2.2 7.1 99 1170 2.8200
22 GOST-315M-2 348.0 200.0 270.0 2975 94.8 0.92 1.8 2.2 7.1 99 1460 3.6600
23 GOST-355S-2 433.0 250.0 340.0 2980 95.2 0.92 1.6 2.2 7.1 103 1900 3.0000
24 GOST-355M-2 545.0 315.0 430.0 2980 95.4 0.92 1.6 2.2 7.1 103 2300 3.5000
25 GOST-71A-4 1.57 0.55 0.75 1390 71.0 0.75 2.4 2.3 5.2 58 8.4 0.0010
26 GOST-71B-4 2.05 0.75 1.0 1390 73.0 0.76 2.3 2.3 6.0 58 10.0 0.0015
27 GOST-80A-4 2.85 1.1 1.5 1390 76.2 0.77 2.3 2.3 6.0 61 14.0 0.0028
28 GOST-80B-4 3.72 1.5 2.0 1400 78.5 0.78 2.3 2.3 6.0 61 16.0 0.0034
29 GOST-90L-4 5.09 2.2 3.0 1410 80.0 0.81 2.3 2.3 7.0 64 17.0 0.0056
30 GOST-100S-4 6.78 3.0 4.0 1410 82.6 0.82 2.3 2.3 7.0 64 21.0 0.0100
31 GOST-100L-4 8.8 4.0 5.5 1435 84.2 0.82 2.3 2.3 7.0 65 37.0 0.0130
32 GOST-112M-4 11.7 5.5 7.5 1440 85.7 0.83 2.3 2.3 7.0 71 45.0 0.0236
33 GOST-132S-4 15.6 7.5 10.0 1450 87.0 0.84 2.3 2.3 7.0 71 52.0 0.0227
34 GOST-132M-4 22.5 11.0 15.0 1460 88.4 0.84 2.2 2.3 7.0 75 60.0 0.0349
35 GOST-160S-4 30.0 15.0 20.0 1460 89.4 0.85 2.2 2.3 7.5 75 125 0.0600
36 GOST-160M-4 36.3 18.5 25.0 1470 90.0 0.86 2.2 2.3 7.5 76 142 0.0650
37 GOST-180S-4 43.2 22.0 30.0 1470 90.5 0.86 2.2 2.3 7.5 76 160 0.0700
38 GOST-180M-4 57.6 30.0 40.0 1470 91.4 0.86 2.2 2.3 7.2 79 190 0.0800
39 GOST-200M-4 70.2 37.0 50.0 1475 92.0 0.87 2.2 2.3 7.2 81 230 0.1500
40 GOST-200L-4 84.9 45.0 60.0 1475 92.5 0.87 2.2 2.3 7.2 81 260 0.1800
41 GOST-225M-4 103.0 55.0 75.0 1480 93.0 0.87 2.2 2.3 7.2 83 325 0.2000
42 GOST-250S-4 138.3 75.0 100.0 1480 93.6 0.88 2.2 2.3 6.8 86 450 0.3500
43 GOST-250M-4 165.0 90.0 125.0 1480 93.9 0.88 2.2 2.3 6.8 86 495 0.4000
44 GOST-280S-4 201.0 110.0 150.0 1480 94.5 0.88 2.1 2.2 6.9 93 650 0.6000
45 GOST-280M-4 240.0 132.0 180.0 1480 94.8 0.88 2.1 2.2 6.9 93 700 0.7000
46 GOST-315S-4 288.0 160.0 220.0 1480 94.9 0.89 2.1 2.2 6.9 97 1000 2.7000
47 GOST-315M-4 360.0 200.0 270.0 1480 94.9 0.89 2.1 2.2 6.9 97 1200 4.8200
48 GOST-355S-4 443.0 250.0 340.0 1490 95.2 0.90 2.1 2.2 6.9 101 1700 6.5000
49 GOST-355M-4 559.0 315.0 430.0 1490 95.2 0.90 2.1 2.2 6.9 101 1900 8.2000
50 GOST-71A-6 1.30 0.37 0.50 880 62.0 0.70 1.9 2.0 4.7 54 8.4 0.0015
51 GOST-71B-6 1.80 0.55 0.75 880 65.0 0.72 1.9 2.1 4.7 54 10.0 0.0020
52 GOST-80A-6 2.29 0.75 1.0 905 69.0 0.72 2.0 2.1 5.3 57 14.0 0.0035
53 GOST-80B-6 3.18 1.1 1.5 905 72.0 0.73 2.0 2.1 5.5 57 16.0 0.0048
54 GOST-90L-6 4.00 1.5 2.0 920 76.0 0.75 2.0 2.1 5.5 61 18.0 0.0066
55 GOST-100L-6 5.60 2.2 3.0 935 79.0 0.76 2.0 2.1 6.5 65 33.5 0.0200
56 GOST-112MA-6 7.40 3.0 4.0 960 81.0 0.76 2.1 2.1 6.5 69 41.0 0.0380
57 GOST-112MB-6 9.75 4.0 5.5 960 82.0 0.76 2.1 2.1 6.5 69 50.0 0.0425
58 GOST-132S-6 12.9 5.5 7.5 960 84.0 0.77 2.1 2.1 6.5 69 56.0 0.0500
59 GOST-132M-6 17.2 7.5 10.0 970 86.0 0.77 2.0 2.1 6.5 73 61.0 0.0597
60 GOST-160S-6 24.5 11.0 15.0 970 87.5 0.78 2.0 2.1 6.5 73 125 0.0700
61 GOST-160M-6 31.6 15.0 20.0 970 89.0 0.81 2.0 2.1 7.0 73 155 0.0750
62 GOST-180M-6 38.6 18.5 25.0 980 90.0 0.81 2.1 2.1 7.0 76 160 0.0900
63 GOST-200M-6 44.7 22.0 30.0 980 90.0 0.83 2.0 2.1 7.0 76 195 0.2000
64 GOST-200L-6 59.3 30.0 40.0 980 91.5 0.84 2.0 2.1 7.0 76 225 0.2500
65 GOST-225M-6 71.0 37.0 50.0 980 92.0 0.86 2.1 2.1 7.0 78 360 0.8250
66 GOST-250S-6 86.0 45.0 60.0 980 92.5 0.86 2.1 2.0 7.0 80 465 1.2800
67 GOST-250M-6 104.0 55.0 75.0 980 92.8 0.86 2.1 2.0 7.0 80 520 1.4800
68 GOST-280S-6 142.0 75.0 100.0 985 93.5 0.86 2.0 2.0 6.7 85 690 2.6300
69 GOST-280M-6 169.0 90.0 125.0 985 93.8 0.86 2.0 2.0 6.7 85 800 3.3300
70 GOST-315S-6 207.0 110.0 150.0 985 94.0 0.86 2.0 2.0 6.7 85 880 3.6000
71 GOST-315M-6 245.0 132.0 180.0 985 94.2 0.87 2.0 2.0 6.7 85 1050 6.0000
72 GOST-355S-6 292.0 160.0 220.0 990 94.5 0.88 1.9 2.0 6.7 92 1550 9.5000
73 GOST-355MA-6 365.0 200.0 270.0 990 94.5 0.88 1.9 2.0 6.7 92 1600 10.4000
74 GOST-355MB-6 457.0 250.0 340.0 990 94.5 0.88 1.9 2.0 6.7 92 1700 12.4000
75 GOST-71A-8 1.10 0.25 0.37 645 54.0 0.61 1.8 1.9 3.3 52 9.0 0.0025
76 GOST-80A-8 1.49 0.37 0.50 675 62.0 0.61 1.8 1.9 4.0 56 15.0 0.0030
77 GOST-80B-8 2.17 0.55 0.75 680 63.0 0.61 1.8 2.0 4.0 56 18.0 0.0038
78 GOST-90LA-8 2.43 0.75 1.0 680 70.0 0.67 1.8 2.0 4.0 59 23.0 0.0063
79 GOST-90LB-8 3.36 1.1 1.5 680 72.0 0.69 1.8 2.0 5.0 59 28.0 0.0090
80 GOST-100L-8 4.4 1.5 2.0 690 74.0 0.70 1.8 2.0 5.0 61 33.5 0.0123
81 GOST-112MA-8 6.0 2.2 3.0 710 79.0 0.71 1.8 2.0 6.0 64 46.0 0.0221
82 GOST-112MB-8 7.8 3.0 4.0 710 80.0 0.73 1.8 2.0 6.0 64 53.0 0.0288


MOUNTING AND OVERALL DIMENSIONS IM B35 H80-355
Type POLES L H C P N E T D G F DH HD M S AD AC A AB B K
80A 2.4.6 310 80 50 200 130 50 3.5 22 18.5 6 M6X1X25 214 165 4x12 145 158 125 165 100 10
80B 2.4.6 310 80 50 200 130 50 3.5 22 18.5 6 M6X1X25 214 165 4x12 145 158 125 165 100 10
90L 2.4.6 360 90 56 250 180 50 4 24 20 8 M8X1.25X25 250 215 4x15 155 177 140 180 125 10
100S 2.4 385 100 63 250 180 60 4 28 24 8 M8X1.25X35 270 215 4x15 180 198 160 205 112 12
100L 2.4.6 385 100 63 250 180 60 4 28 24 8 M8X1.25X35 270 215 4x15 180 198 160 205 140 12
112MA 4.6 435 112 70 300 230 80 4 32 27 10 M10X1.5X35 300 265 4x15 190 220 190 230 140 12
112MB 2.4.6.8 435 112 70 300 230 80 4 32 27 10 M10X1.5X35 300 265 4x15 190 220 190 230 140 12
132S 4.6.8 470 132 89 350 250 80 5 38 33 10 M12X1.75X40 345 300 4x19 210 259 216 270 140 12
132M 2.4.6 510 132 89 350 250 80 5 38 33 10 M12X1.75X40 345 300 4x19 210 259 216 270 178 12
160S 2 615 160 108 350 250 110 5 42 37 12 M16X2X40 420 300 4x19 255 315 254 320 178 15
160S 4.6.8 615 160 108 350 250 110 5 48 42.5 14 M16X2X40 420 300 4x19 225 315 254 320 178 15
160M 2 660 160 108 350 250 110 5 42 37 12 M16X2X40 420 300 4x19 255 315 254 320 210 15
160M 4.6.8 660 160 108 350 250 110 5 48 42.5 14 M16X2X40 420 300 4x19 255 315 254 320 210 15
180S 2 700 180 121 400 300 110 5 48 42.5 14 M16X2X45 455 350 4x19 280 355 279 355 203 15
180S 4.6.8 700 180 121 400 300 110 5 55 49 16 M16X2X45 455 350 4x19 280 355 279 355 203 15
180M 2 740 180 121 400 300 110 5 48 42.5 14 M16X2X45 455 350 4x19 280 355 279 355 241 15
180M 4.6.8 740 180 121 400 300 110 5 55 49 16 M16X2X45 455 350 4x19 280 355 279 355 241 15
200M 2 770 200 133 450 350 110 5 55 49 16 M18X2.5X50 505 400 4x19 305 397 318 395 267 19
200M 4.6.8 800 200 133 450 350 140 5 60 53 18 M18X2.5X50 505 400 4x19 305 397 318 395 267 19
200L 2 770 200 133 450 350 110 5 55 49 16 M18X2.5X50 505 400 4x19 305 397 318 395 305 19
200L 4.6.8 800 200 133 450 350 140 5 60 53 18 M18X2.5X50 505 400 4x19 305 397 318 395 305 19
225M 2 820 225 149 550 450 110 5 55 49 16 M18X2.5X50 560 500 4x19 335 445 356 435 311 19
225M 4.6.8 850 225 149 550 450 140 5 65 58 18 M18X2.5X50 560 500 4x19 335 445 356 435 311 19
250S 2 845 250 168 550 450 140 5 65 58 18 M20X2.5X60 615 500 4x24 370 485 406 490 311 24
250S 4.6.8 845 250 168 550 450 140 5 75 67.5 20 M20X2.5X60 615 500 4x24 370 485 406 490 311 24
250M 2 920 250 168 550 450 140 5 65 58 18 M20X2.5X60 615 500 4x24 370 485 406 490 349 24
250M 4.6.8 920 250 168 550 450 140 5 75 67.5 20 M20X2.5X60 615 500 4x24 370 485 406 490 349 24
280S 2 995 280 190 660 550 140 6 70 62.5 20 M20X2.5X60 680 600 4x24 410 547 457 550 368 24
280S 4.6.8 1025 280 190 660 550 170 6 80 71 22 M20X2.5X60 680 600 4x24 410 547 457 550 368 24
280M 2 1045 280 190 660 550 140 6 70 62.5 20 M20X2.5X60 680 600 4x24 410 547 457 550 419 24
280M 4.6.8 1075 280 190 660 550 170 6 80 71 22 M20X2.5X60 680 600 4x24 410 547 457 550 419 24
315S 2 1185 315 216 660 550 140 6 75 67.5 20 M20X2.5X60 845 600 4x24 530 620 508 635 406 28
315S 4.6.8 1220 315 216 660 550 170 6 90 81 25 M20X2.5X60 845 600 4x24 530 620 508 635 406 28
315M 2 1290 315 216 660 550 140 6 75 67.5 20 M20X2.5X60 845 600 4x24 530 620 508 635 457 28
315M 4.6.8 1325 315 216 660 550 170 6 90 81 25 M20X2.5X60 845 600 4x24 530 620 508 635 457 28
355S 2 1520 355 254 800 680 170 6 85 76 22 M24X3X70 1010 740 4x24 655 698 610 730 500 28
355S 4.6.8 1560 355 254 800 680 210 6 100 92 28 M24X3X70 1010 740 4x24 655 698 610 730 500 28
355M 2 1520 355 254 800 680 170 6 85 76 22 M24X3X70 1010 740 4x24 655 698 610 730 560 28
355M 4.6.8 1560 355 254 800 680 210 6 100 92 28 M24X3X70 1010 740 4x24 655 698 610 730 560 28
