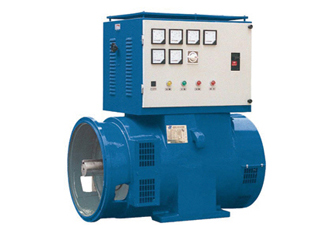

TZH Series
- Location :
- Home
- >Products
- >Alternator
- >Brush Alternator
.jpg)
1. Compound excitation, simple circuit, high reliability and easy maintenance.
2. Good dynamic performance, even if the sudden load or unload, light will not flicker.
3. A strong starting performance without any additional devices will be able to direct 70% of the capacity of the motor starter.
4. Close to the normal mode voltage, the output can be safely used on computers.
5. When the generator assumes the load imbalance, the three-phase voltage deviation of less than 3%.
|
Model |
Power (KW) |
Current (A) |
Speed (r/min) |
Eff (%) |
cos￠ |
(KW) |
Power (KW) |
Frame Size |
|
TZH-30 |
30 |
54.1 |
1500 |
88.0 |
0.8 |
21 |
21 |
225 |
|
TZH-40 |
40 |
72.2 |
1500 |
89.0 |
0.8 |
28 |
28 |
225 |
|
TZH-50 |
50 |
90.2 |
1500 |
89.5 |
0.8 |
30 |
30 |
225 |
|
TZH-64 |
64 |
115 |
1500 |
90.5 |
0.8 |
30 |
30 |
250 |
|
TZH-75 |
75 |
135 |
1500 |
90.8 |
0.8 |
30 |
30 |
250 |
|
TZH-90 |
90 |
162 |
1500 |
91.0 |
0.8 |
55 |
55 |
280 |
|
TZH-120 |
120 |
217 |
1500 |
91.5 |
0.8 |
55 |
55 |
280 |

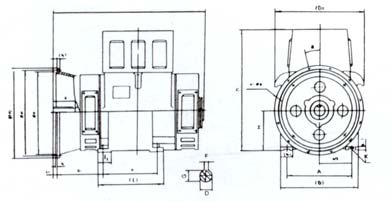

Overall & Installation Dimensions
.jpg)
|
TYPE
|
MOUNTING DIMENSIONS(mm) |
OVERALL DIMENSIONS (mm) |
|||||||||||||||||||
|
H |
A |
A/2 |
B |
C |
D |
E |
F |
G |
K |
N |
M |
N |
a-n |
P |
L |
I |
L1 |
W |
b |
h |
|
|
TZH-30 |
225 |
356 |
178 |
286 |
163 |
60 |
140 |
18 |
53 |
19 |
532 |
552 |
15° |
12-12 |
572 |
770 |
346 |
18 |
530 |
421 |
700 |
|
TZH-40 |
311 |
810 |
346 |
||||||||||||||||||
|
TZH-50 |
356 |
870 |
371 |
||||||||||||||||||
|
TZH-64 |
250 |
406 |
203 |
349 |
168 |
70 |
140 |
20 |
62.5 |
24 |
532 |
552 |
15° |
12-12 |
572 |
905 |
453 |
18 |
560 |
560 |
800 |
|
TZH-75 |
406 |
945 |
490 |
||||||||||||||||||
|
TZH-90 |
280 |
457 |
228.5 |
368 |
190 |
80 |
170 |
22 |
71 |
24 |
532 |
552 |
15° |
12-12 |
572 |
1040 |
438 |
18 |
640 |
580 |
885 |
|
TZH-120 |
457 |
1120 |
517 |
||||||||||||||||||
|
TZH-150 |
355 |
610 |
305 |
500 |
254 |
90 |
170 |
25 |
81 |
28 |
605 |
625 |
15° |
12-14 |
645 |
1270 |
585 |
22 |
860 |
720 |
1020 |
|
TZH-200 |
500 |
1270 |
585 |
||||||||||||||||||
|
TZH-250 |
560 |
1385 |
645 |
||||||||||||||||||
