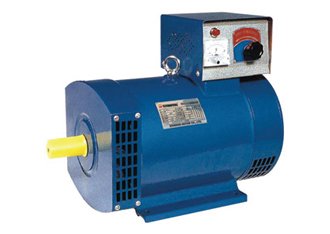

STC Series

This series generators are mainly used for towns, villages, sites, mountains and pastures and other lighting and dynamic three-phase AC power, but also can be used as emergency standby power. Transition generator for the drip-style, using third-harmonic excitation, the use of safe, reliable, easy maintenance. The generators are three-phase four-wire system, the use of star connection with a neutral, rated voltage is 400V, phase voltage 230V, frequency 50HZ, power factor 0.8 (lag), according to customer requirements, we also provide 60HZ and the voltage of the generator. With a prime mover can be directly connected or V-belt connection, reversing the rated continuous operation, when the prime mover rotation speed of 3%, the load from 0-100%, COS any changes in the 1.0-0.8 range, its rated voltage of the allowable range, constant performance, transient performance; the same time, without any starting device ℃ 70% of capacity can directly start the cage asynchronous generator.

Model	Power(KW)		Voltage (V)	Current (A)	Power Factor (cos)	Speed (r.p.m)	Number of poles
Model	KVA	kW	Voltage (V)	Current (A)	Power Factor (cos)	Speed (r.p.m)	Number of poles
STC-3	3.8	3	400	5.4	0.8	1500	4
STC-5	6.3	5	400	9	0.8	1500	4
STC-7.5	9.4	7.5	400	13.5	0.8	1500	4
STC-8	10	8	400	14.4	0.8	1500	4
STC-10	12.5	10	400	18.1	0.8	1500	4
STC-12	15	12	400	21.7	0.8	1500	4
STC-15	18.8	15	400	27.1	0.8	1500	4
STC-20	25	20	400	36.1	0.8	1500	4
STC-24	30	24	400	43.3	0.8	1500	4
STC-30	37.5	30	400	54.1	0.8	1500	4
STC-40	50	40	400	72.2	0.8	1500	4
STC-50	62.5	50	400	90.2	0.8	1500	4

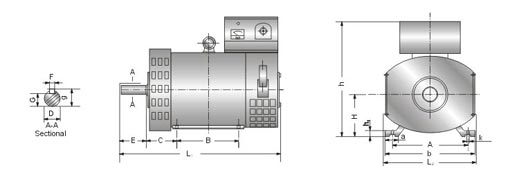

Overall & Installation Dimensions

Model	Power(KW)		Mounting Dimensions(mm)									Frame Dimensions(mm)
Model	KVA	KW	A	B	C	D	E	F	G	H	K	a	b	h1	h	L1	L2	g
STC-3	3.8	3	216	178	89	Φ32	80	10	26.8	132	13	34	250	18	400	480	270	34.8
STC-5	6.3	5	254	254	108	Φ38	80	12	32.8	160	16	50	310	25	450	580	325	40.8
STC-7.5	9.4	7.5	254	254	108	Φ38	80	12	32.8	160	16	50	310	25	450	580	325	40.8
STC-10	12.5	10	279	203	121	Φ42	110	12	36.8	180	16	60	339	25	490	610	365	44.8
STC-12	15	12	279	203	121	Φ42	110	12	36.8	180	16	60	339	25	490	610	365	44.8
STC-15	18.8	15	318	228	133	Φ48	110	14	42.2	200	20	60	378	30	500	660	400	51.2
STC-20	25	20	318	228	133	Φ48	110	14	42.2	200	20	60	378	30	500	660	400	51.2
STC-24	30	24	318	228	133	Φ48	110	14	42.2	200	20	60	378	30	500	660	400	51.2
STC-30	37.5	30	356	286	149	Φ60	140	18	53	225	20	65	421	32	650	770	452	64
STC-40	50	40	356	286	149	Φ60	140	18	53	225	20	65	421	32	650	770	452	64
STC-50	62.5	50	356	311	149	Φ60	140	18	53	225	20	65	421	32	650	810	452	64
