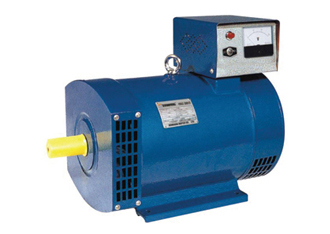

The generator structure is drip-proof, salient pole, self-motivation constant structure of the internal use of high quality generators and other electrical silicon steel material of stator insulation class B class this series generator has a beautiful appearance, reasonable structure And easy maintenance features, while the dimensions on the use of IEC standards cover for B-type structure for Australia, Europe, America and other countries and regions.
|
Model |
Power (KW) |
Current (A) |
Voltage (V) |
Power Factor (cos) |
Number of poles |
Speed(r.p.m) |
||
|
In series |
And the United |
In series |
And the United |
|||||
|
ST-2 |
2 |
8.7 |
17.4 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-3 |
3 |
13 |
26 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-5 |
5 |
21.8 |
43.5 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-7.5 |
7.5 |
32.6 |
65.2 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-10 |
10 |
43.5 |
87 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-12 |
12 |
52.2 |
104 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-15 |
15 |
65.3 |
130 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-20 |
20 |
87 |
174 |
230 |
115 |
1.0 |
4 |
1500 |
|
ST-24 |
24 |
104 |
208 |
230 |
115 |
1.0 |
4 |
1500 |

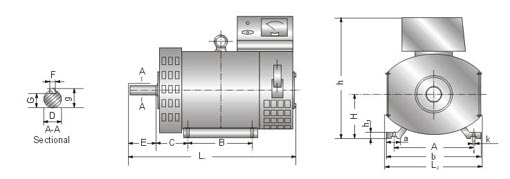

Overall & Installation Dimensions
.jpg)
|
Model
|
|
Mounting Dimensions(mm) |
Frame Dimensions(mm) |
||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
a |
b |
h1 |
h |
L1 |
L2 |
g |
||||
|
ST-2 |
2 |
216 |
178 |
89 |
Φ32 |
80 |
10 |
27 |
132 |
12 |
34 |
250 |
18 |
385 |
480 |
270 |
34.8 |
||
|
ST-3 |
3 |
216 |
178 |
89 |
Φ32 |
80 |
10 |
27 |
132 |
12 |
34 |
250 |
18 |
385 |
480 |
270 |
34.8 |
||
|
ST-5 |
5 |
254 |
254 |
108 |
Φ38 |
80 |
10 |
33 |
160 |
15 |
50 |
310 |
25 |
440 |
580 |
325 |
40.8 |
||
|
ST-7.5 |
7.5 |
254 |
254 |
108 |
Φ38 |
80 |
10 |
33 |
160 |
15 |
50 |
310 |
25 |
440 |
580 |
325 |
40.8 |
||
|
ST-10 |
10 |
279 |
203 |
121 |
Φ42 |
110 |
12 |
37 |
180 |
15 |
60 |
339 |
25 |
480 |
610 |
365 |
44.8 |
||
|
ST-12 |
12 |
279 |
203 |
121 |
Φ42 |
110 |
12 |
37 |
180 |
15 |
60 |
339 |
25 |
480 |
610 |
365 |
44.8 |
||
|
ST-15 |
15 |
318 |
228 |
133 |
Φ48 |
110 |
14 |
42.5 |
200 |
19 |
60 |
378 |
30 |
540 |
660 |
400 |
51.2 |
||
|
ST-20 |
20 |
318 |
228 |
133 |
Φ48 |
110 |
14 |
42.5 |
200 |
19 |
60 |
378 |
30 |
540 |
660 |
400 |
51.2 |
||
