SDC Series

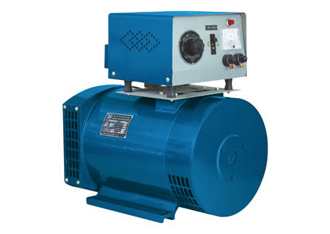

SDC series generating and welding dual-use machine has power generation and welding the same time, both as a mobile power supply equipment, but also can be used as a fixed station for towns, villages, small ships, such as around the workshop or the power supply and lighting Two features are available such as diesel welding. This series generators can lighting, welding individually, can lighting, welding the two simultaneously.

Model	三相 400V 50Hz/1500r/min COS￠ =0.8
	Power(KW)		Voltage （V）	Current (A)	Welding load voltage(V)	Welding current (A)	Duty cycle (%)	Welding current range(A)
	kW	KVA	Voltage （V）	Current (A)	Welding load voltage(V)	Welding current (A)	Duty cycle (%)	Welding current range(A)
SDC-5	5	5	400	9	<80	140	40	60-160
SDC-7.5	7.5	7.5	400	13.5	<80	180	40	70-200
SDC-10	10	10	400	18.1	<80	225	40	80-280
SDC-12	12	12	400	21.7	<80	280	40	100-300

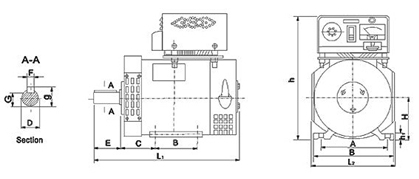

Overall & Installation Dimensions

Model	Mounting Dimensions (mm)										Overall Dimensions (mm)							Weight (kg)
Model	KW	A	B	C	D	E	F	G	H	K	a	b	h1	h	L1	L2	g	Weight (kg)
SDC-5	5	254	254	108	Φ38	80	10	33	160	15	50	310	25	440	580	325	40.8	120
SDC-7.5	7.5	254	254	108	Φ38	80	12	33	160	16	50	310	25	440	580	325	40.8	130
SDC-10	10	279	203	121	Φ42	110	12	37	180	15	60	339	25	480	610	365	44.8	140
SDC-12	12	279	203	121	Φ42	110	12	37	180	15	60	339	25	480	610	365	44.8	155
