SD Series

  • SD Series

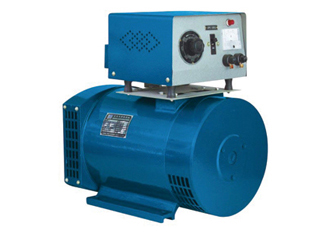

SD series generating and welding dual-purpose welding machine also has two functions available power and diesel engines, both as a mobile power supply equipment, but also can be used as a fixed station for towns, villages, small ships, workshops, and other lighting everywhere or power supply and welding and so on. This series generators can lighting, welding individually, can lighting, welding the two simultaneously.

Model

single phase 230V 50Hz/1500r/min COS¢ =1.0

Power(KW)

Voltage (V)

Current  (A)

Welding load voltage  (V)

Welding current  (A)

Duty cycle(%)

Welding current range(A)

kW

KVA

SD-5

5

5

230

21.7

<80

160

40

70-200

SD-7.5

7.5

7.5

230

32.6

<80

200

40

80-240

SD-10

10

10

230

43.5

<80

230

40

100-300

SD-12

12

12

230

52.2

<80

300

40

140-320

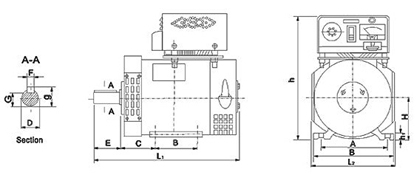

Overall & Installation Dimensions

Model

Mounting Dimensions (mm)

Overall Dimensions (mm)

Weight (kg)

KW

A

B

C

D

E

F

G

H

K

a

b

h1

h

L1

L2

g

SD-5

5

254

254

108

Φ38

80

10

33

160

15

50

310

25

440

580

325

40.8

120

SD-7.5

7.5

254

254

108

Φ38

80

12

33

160

16

50

310

25

440

580

325

40.8

130

SD-10

10

279

203

121

Φ42

110

12

37

180

15

60

339

25

480

610

365

44.8

140

SD-12

12

279

203

121

Φ42

110

12

37

180

15

60

339

25

480

610

365

44.8

155
